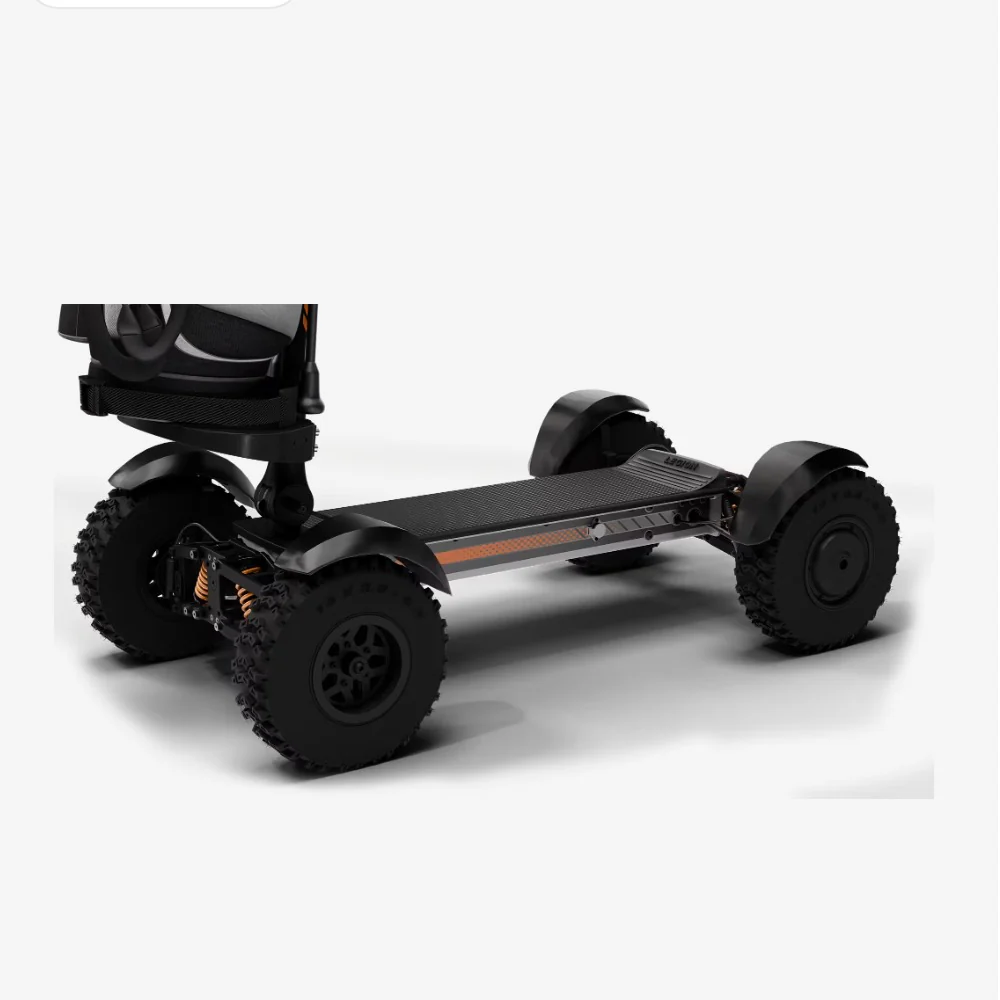

Cycleboard X-QUAD 3000 Golf 4-Wheel Electric Golf Vehicle
Cycleboard X-QUAD 3000 Golf 4-Wheel Electric Golf Vehicle
Specs
Electronics
Display
Backlit Color LED Display with Anti-Theft Password + Parameter Lock Password (for fleet operators), Speed Limit, 4 Ride Modes, Auto-Braking, USB Charge Port, Odometer, Speed, Battery Life, & more.
Throttle
Thumb throttle system
Motor
Dual 1500w brushless, gearless, rear hub motors. With a 2-Piece hub design, IP67 water ingress rating and Maximum speed of 27 mph.
Battery
Removeable Lithium ion Battery with range of 50+ miles, made exclusively with LG and/or Samsung cells. 60V 30ah (1800wh) Battery weight is approx. 21lbs with a Charging Time of 8 hours.
Controller
60V, 1500w Dual Controllers (3000w Peak Output)
Charger
60v 3.5 Amp Smart Charger, operates on 100v-240v AC power outlets
Braking
Front Brakes are dual Mechanical/Drum brakes. The Rear Brakes are dual Hydraulic Disc brakes (165mm disc)
Rear Lights
Rear footpad with integrated taillight, brake light and turn signals.
Range
50* miles (range is an estimate based off ideal riding conditions and rider weight )
Speed & Ride Modes
5 Speed Modes: 0 (default), 1 = 11 mph, 2 = 15 mph, 3 = 27 mph, R = Reverse
Components
Rear Brakes Calipers
One piece forged aluminum body 2 piston brake caliper on each rear wheel
Front Brake Drums
High-quality forged aluminum body, with smooth and consistent stopping power.
Brake Levers
3 or 4 finger Aluminum alloy grip levers with electronic braking sensor and integrated parking brake lever
Brake Discs
165 mm Rear Disc Brake
Frame
Aircraft grade aluminum chassis
Wheels & Tires
Front & Rear Tires: 11āx4ā³ Front Wheel Hubs: Machined, 2-piece aluminum hub -OR- Front & Rear Tires: 13āx4ā³ Front Wheel Hubs: Machined, 2-piece aluminum hub
Grips Pad
Square design pattern grit surface, formulated with long-lasting rubber to provide the best grip.
Handle Bar
Reinforced stainless steel 39" to 42" curved handle/Adjustable
Deck
10ā x 27ā Pressure Treated ABS deck with recessed rubber grip surface
Suspension
Front Suspension -Independent: 3" Travel per side Rear Suspension - Independent: 3" Travel per side
Rims
Aluminum two-piece hub design making it easy to replace worn out treads.
Lights
Front Headlight: LED Rear Taillight/Brake Light: LED
Dimensions & Weight
46" L x 26 1/2" , 100lbs w/o battery, 125lbs with battery
Max Suggested Rider Weight
350lbs
Steering
Patented Lean-to-Steer Design (handlebars do not turn)
What's in the Box
Fenders (4 wheels)
The X-Quad comes out of the box with 4 included front and rear fenders for your adventures
Ā
Battery Charger
In the box will be your battery charger and manufacture guide. Please read these carefully to ensure proper use.
Tool Kit
Included in every package will be your X-Quad tool kit, everything you will need to get up and running with your new e-board
Ownerās Manual & Set-up Guide
This is your go to guide on assembly and maintaince for your X-Quad 3000. Store this in a safe place for your reference.
Included in the PackageĀ
Golf Mount
Included in the golf package is a top golf mount, bottom golf mount, sand repair bottle, and hardware.
