Cycleboard X-Quad 3000 |4 Wheel Electric Vehicle
Cycleboard X-Quad 3000 ā 4-Wheel Electric Vehicle, 27 MPH, 50+ Mile Range
Revolutionize your Outdoor AdventureĀ
The epitome of power, performance, and unrivaled versatility, the all-terrain electric X-Quad 3000 with 4-wheel independent double wishbone suspension is here to revolutionize your outdoor adventures. Leave no terrain unconquered as you effortlessly glide through rugged landscapes, conquer trails, and soar over obstacles with precision and grace. With its robust construction, advanced technology and sleek design, this fearless companion redefines what it means to explore.
Specs
ElectronicsĀ
Display
Backlit Color LED Display with Anti-Theft Password + Parameter Lock Password (for fleet operators), Speed Limit, 4 Ride Modes, Auto-Braking, USB Charge Port, Odometer, Speed, Battery Life, & more.
Throttle
Thumb throttle system
Motor
Dual 1500w brushless, gearless, rear hub motors. With a 2-Piece hub design, IP67 water ingress rating and Maximum speed of 27 mph.
Battery
Removeable Lithium ion Battery with range of 50+ miles, made exclusively with LG and/or Samsung cells. 60V 30ah (1800wh) Battery weight is approx. 21lbs with a Charging Time of 8 hours.
Controller
60V, 1500w Dual Controllers (3000w Peak Output)
Charger
60v 3.5 Amp Smart Charger, operates on 100v-240v AC power outlets
Braking
Front Brakes are dual Mechanical/Drum brakes. The Rear Brakes are dual Hydraulic Disc brakes (165mm disc)
Rear Lights
Rear footpad with integrated taillight, brake light and turn signals.
Range
50* miles (range is an estimate based off ideal riding conditions and rider weight )
Speed & Ride Modes
5 Speed Modes: 0 (default), 1 = 11 mph, 2 = 15 mph, 3 = 27 mph, R = Reverse
Components
Rear Brakes Calipers
One piece forged aluminum body 2 piston brake caliper on each rear wheel
Front Brake Drums
High-quality forged aluminum body, with smooth and consistent stopping power.
Brake Levers
3 or 4 finger Aluminum alloy grip levers with electronic braking sensor and integrated parking brake lever
Brake Discs
165 mm Rear Disc Brake
Frame
Aircraft grade aluminum chassis
Wheels & Tires
Front & Rear Tires: 11āx4ā³ Front Wheel Hubs: Machined, 2-piece aluminum hub
Grips Pad
Square design pattern grit surface, formulated with long-lasting rubber to provide the best grip.
Handle Bar
Reinforced stainless steel 39" to 42" curved handle/Adjustable
Deck
10ā x 27ā Pressure Treated ABS deck with recessed rubber grip surface
Suspension
Front Suspension -Independent: 3" Travel per side Rear Suspension - Independent: 3" Travel per side
Rims
Aluminum two-piece hub design making it easy to replace worn out treads.
Lights
Front Headlight: LED Rear Taillight/Brake Light: LED

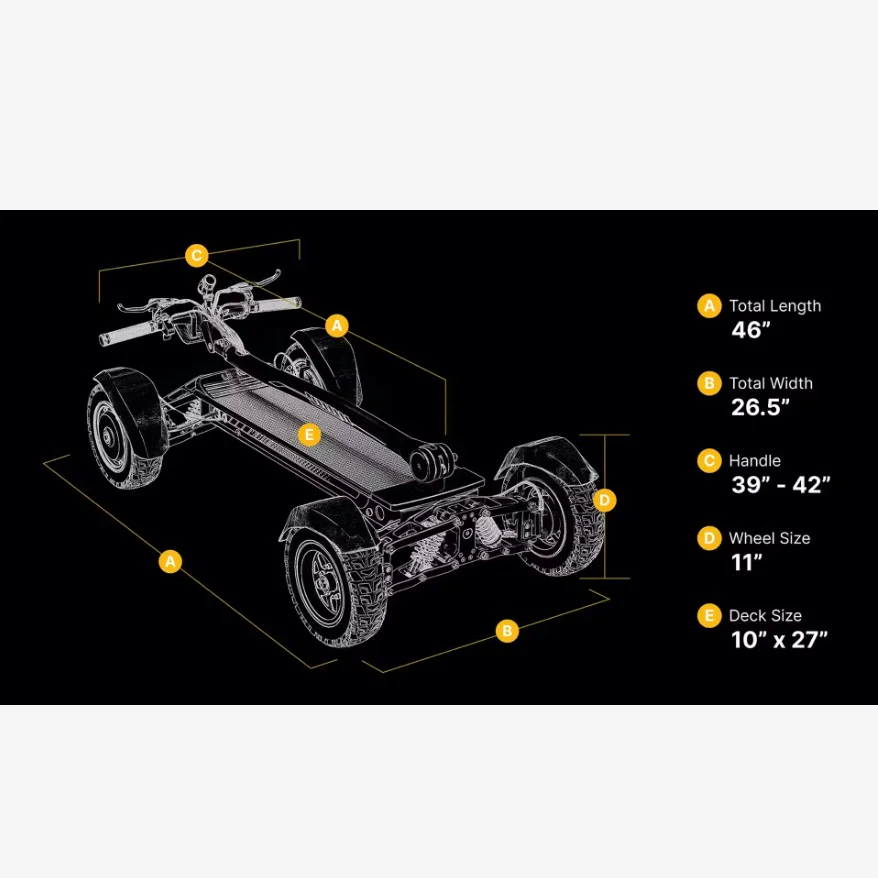

Dimensions & Weight
46" L x 26 1/2" , 100lbs w/o battery, 125lbs with battery
Max Suggested Rider Weight
350lbs
Steering
Patented Lean-to-Steer Design (handlebars do not turn)
What's in the Box
Fenders (4 wheels)
The X-Quad comes out of the box with 4 included front and rear fenders for your adventures
Battery Charger
In the box will be your battery charger and manufacture guide. Please read these carefully to ensure proper use.
Tool Kit
Included in every package will be your X-Quad tool kit, everything you will need to get up and running with your new e-board
Ownerās Manual & Set-up Guide
This is your go to guide on assembly and maintaince for your X-Quad 3000. Store this in a safe place for your reference.
What's included in the Box
-
X-Quad 3000
- Instruction Manual
- Fenders
- 11" or 13" Tires
Original: $4,095.00
-65%$4,095.00
$1,433.25Product Information
