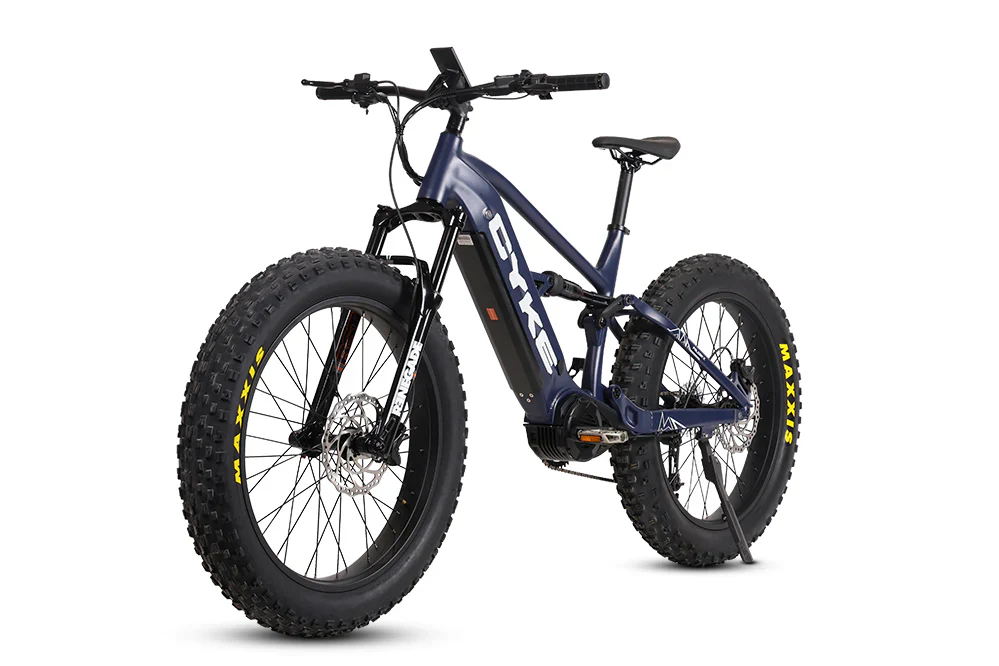

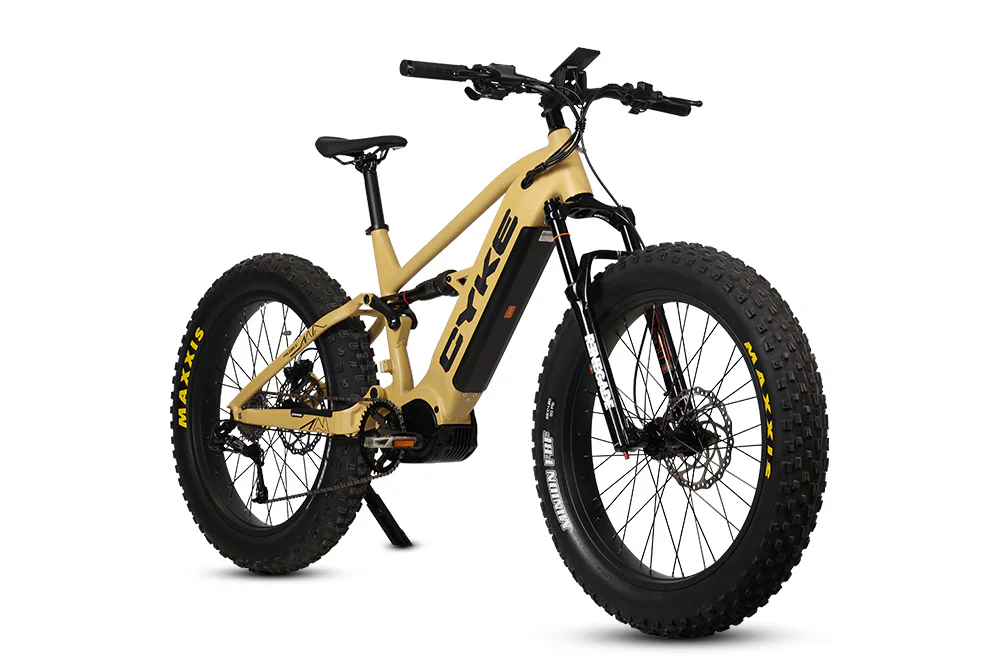

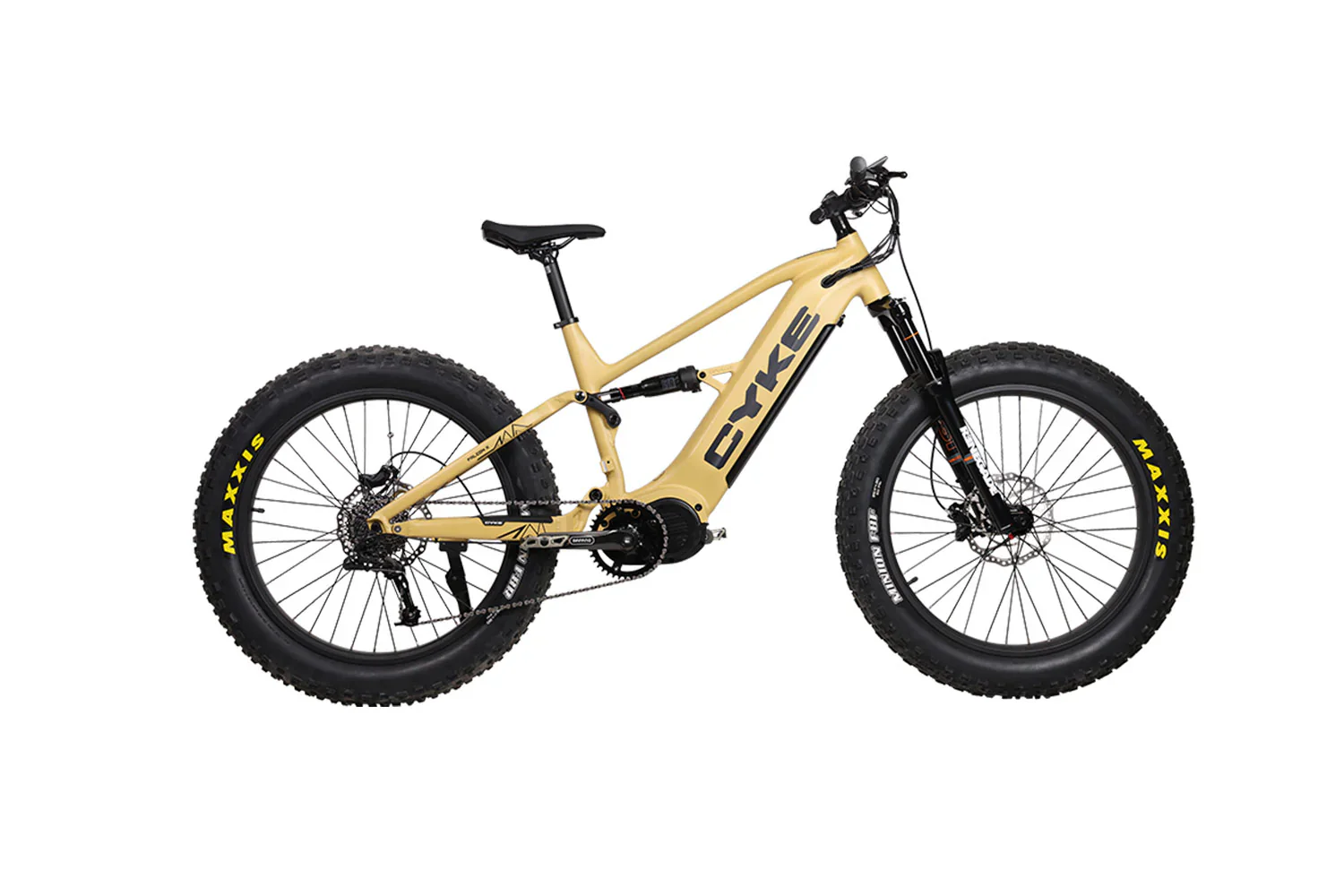

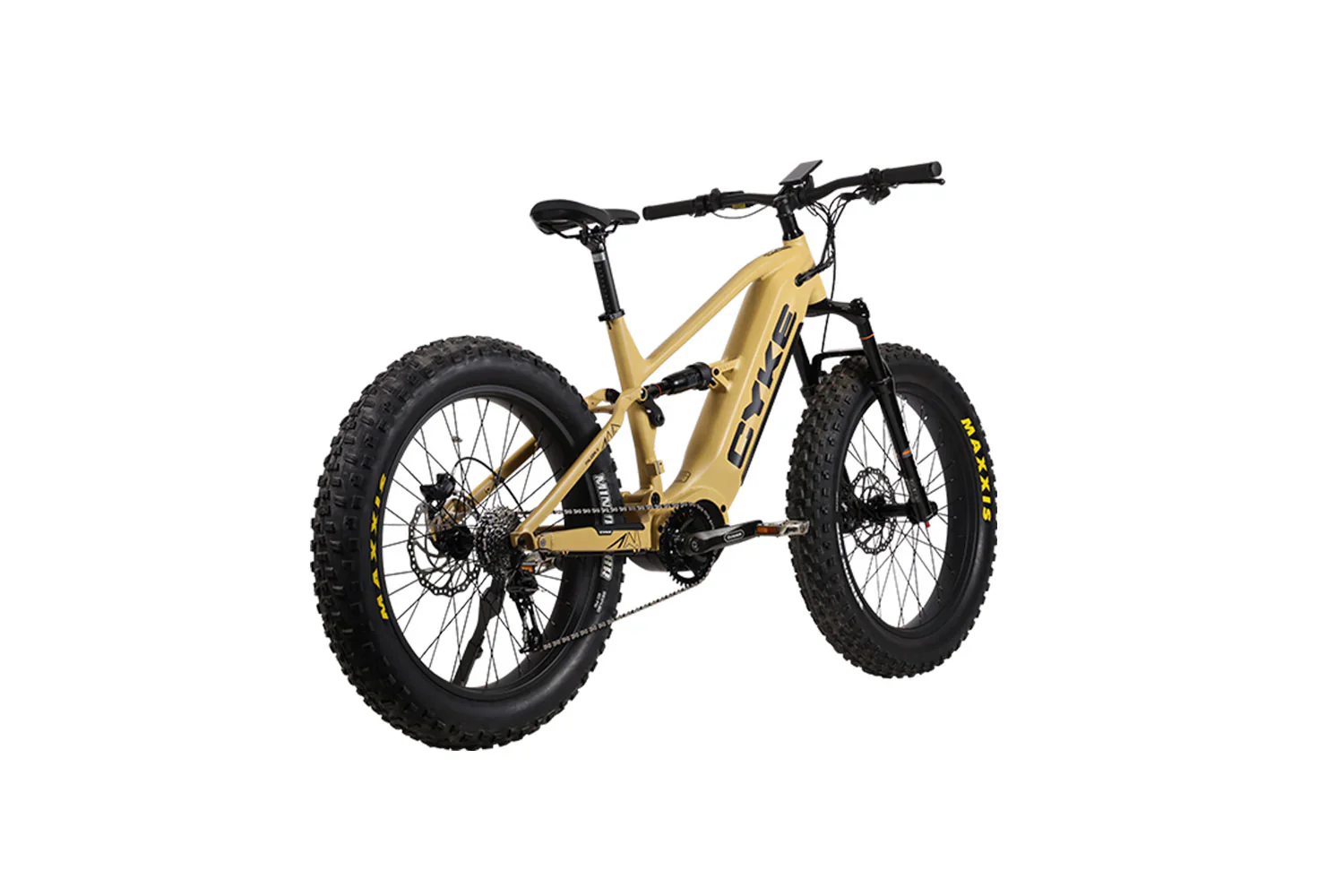

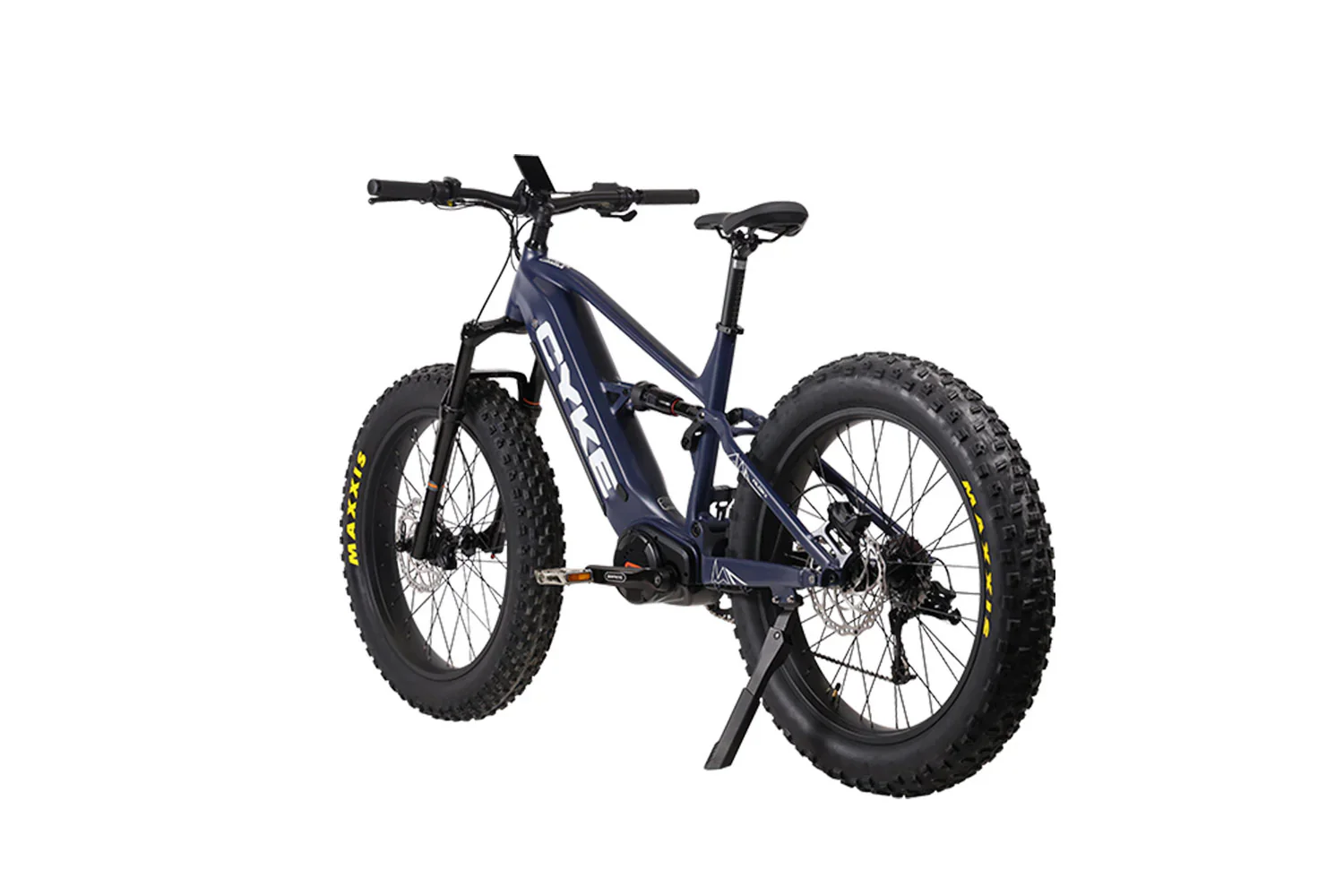

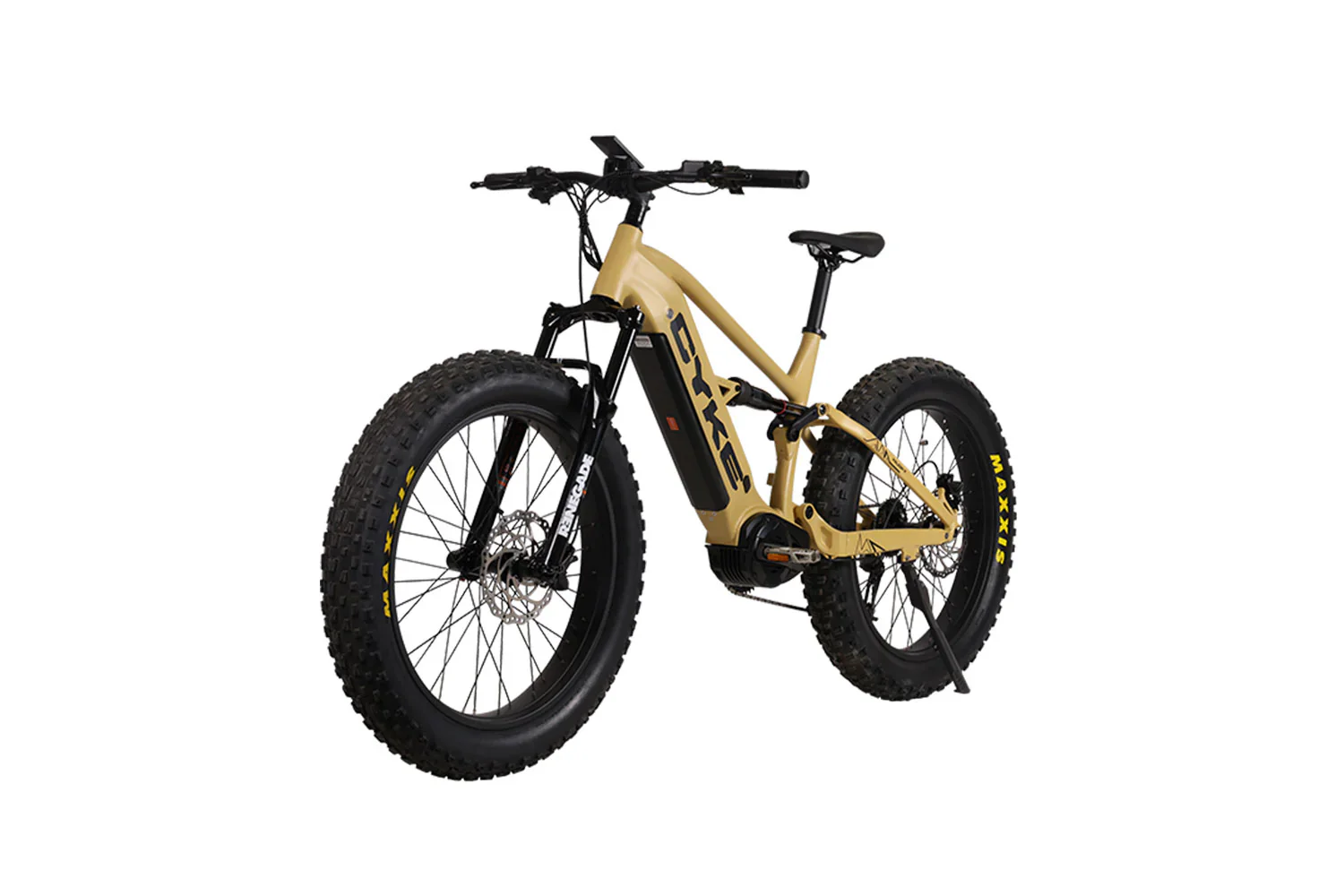

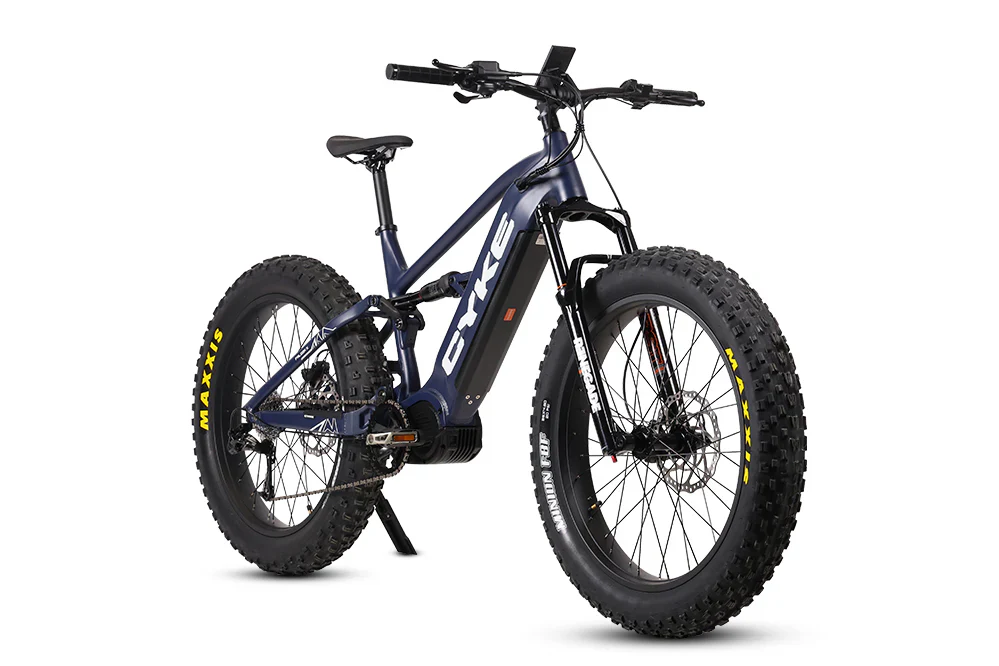

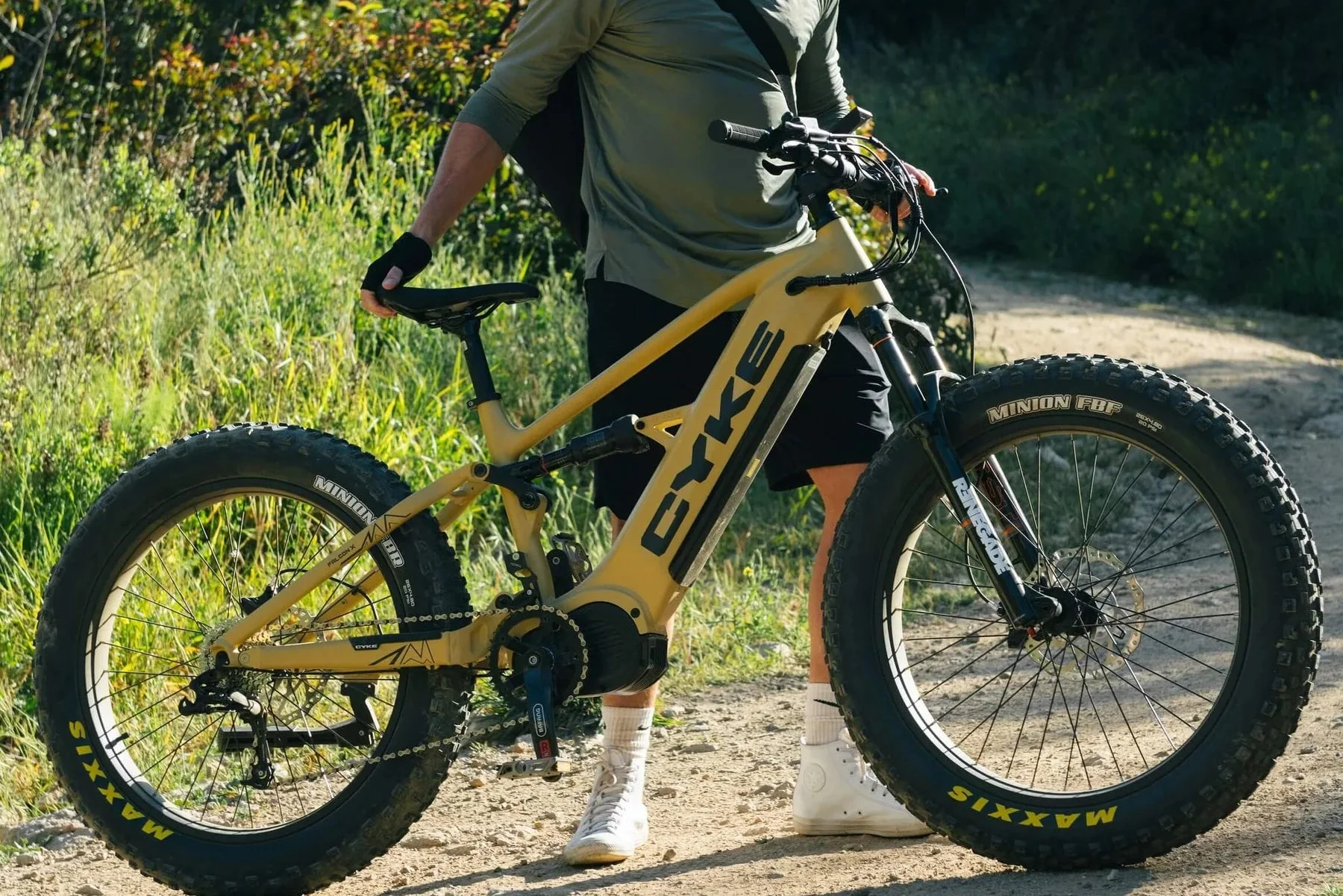

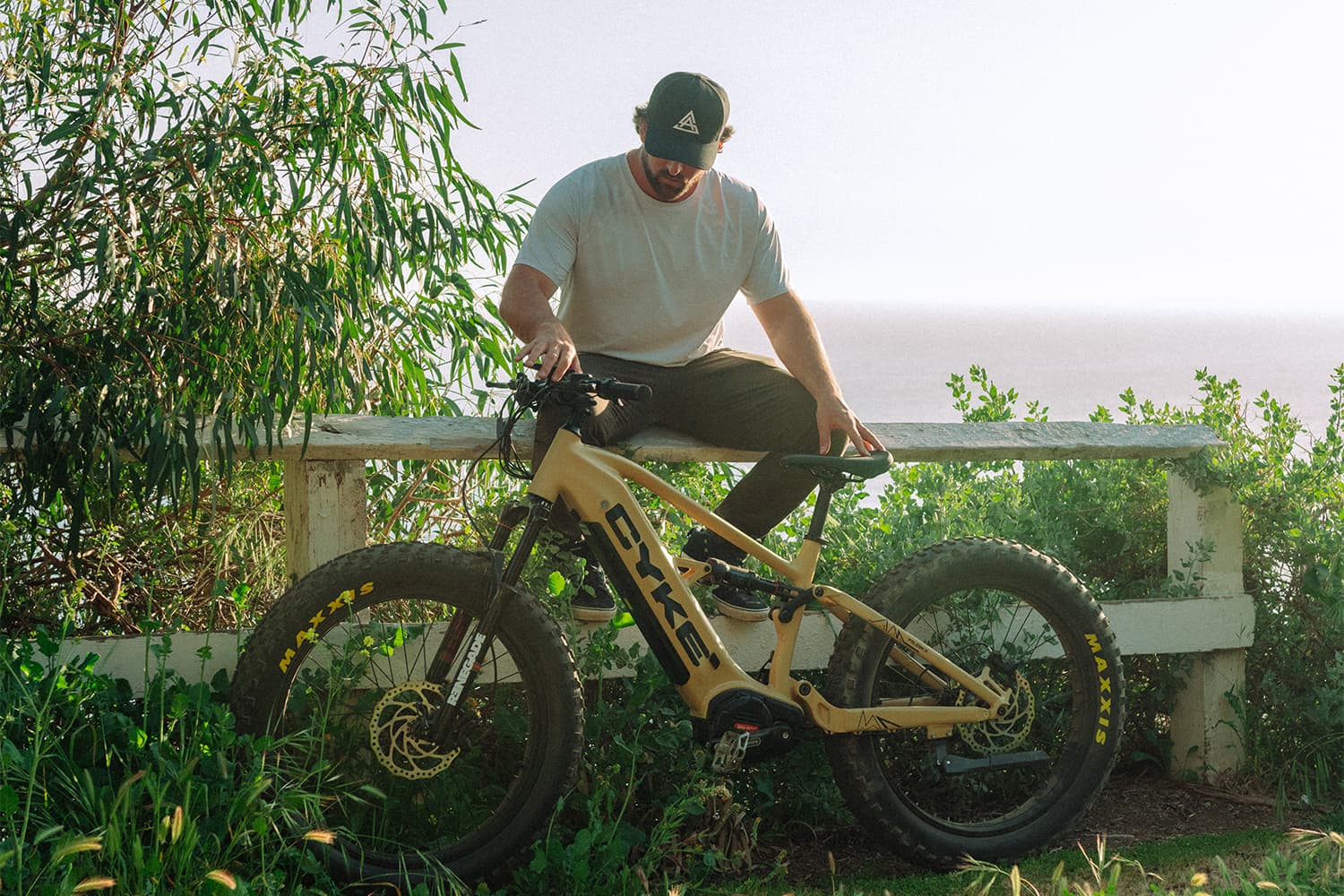

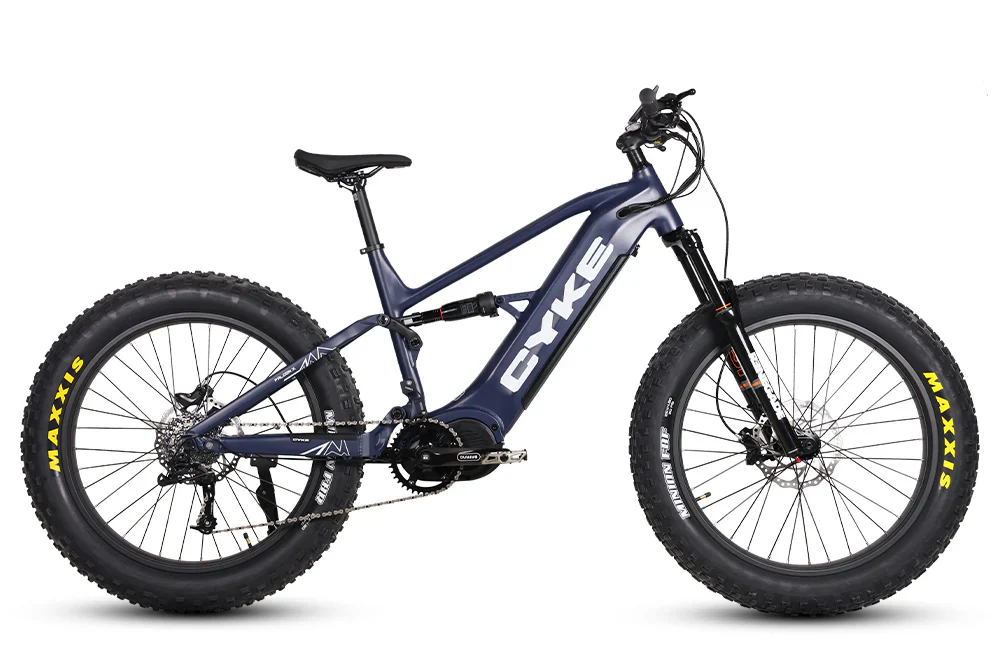

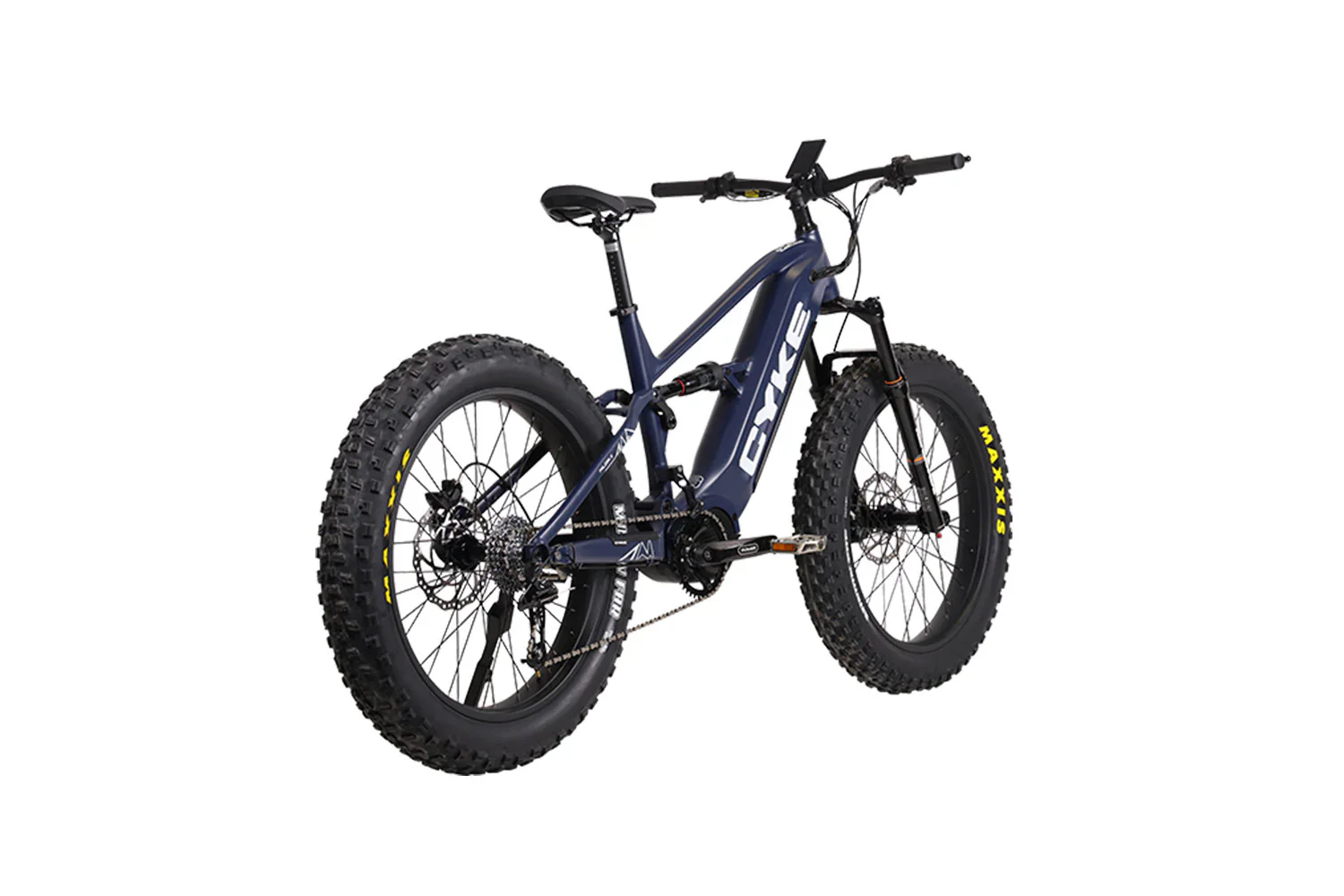

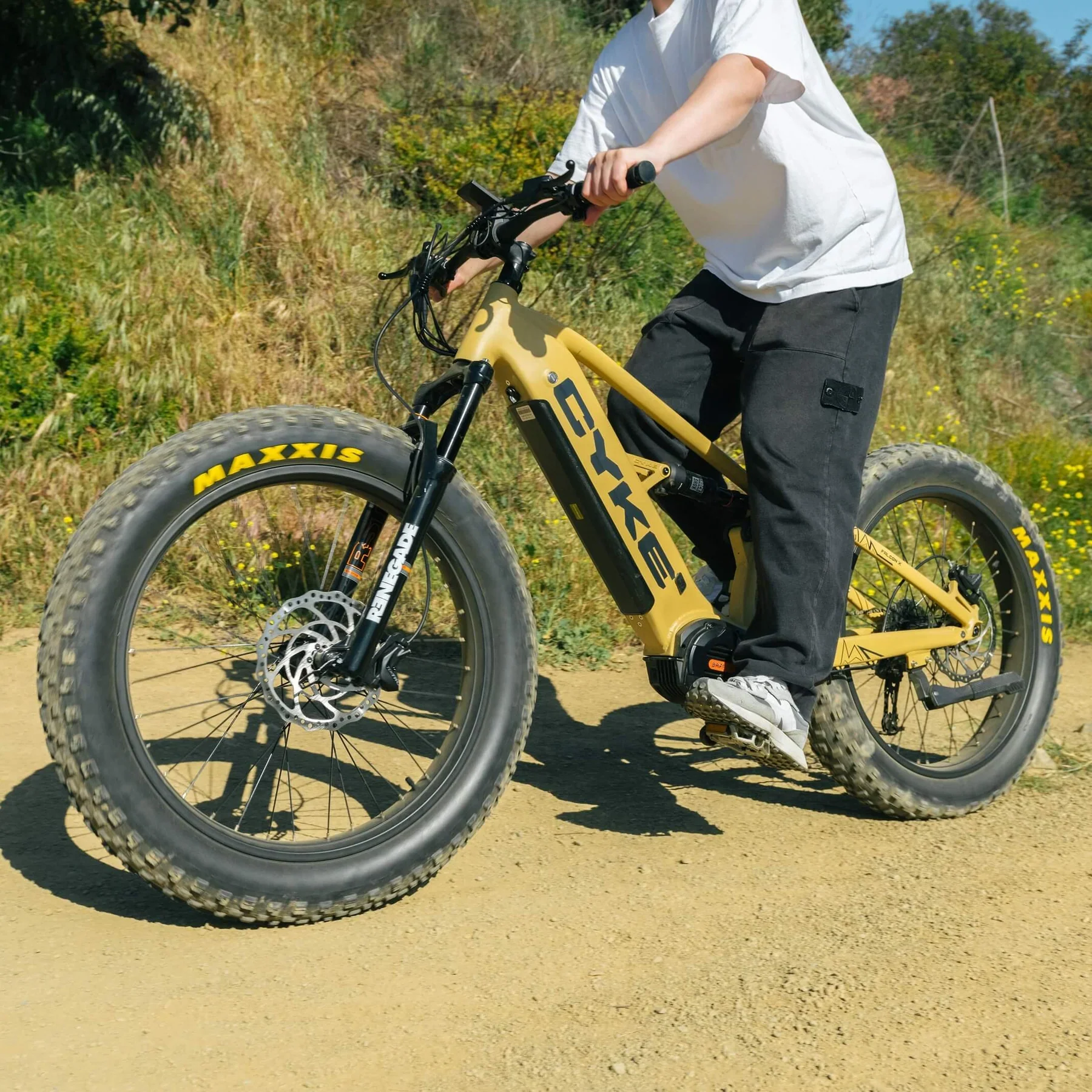

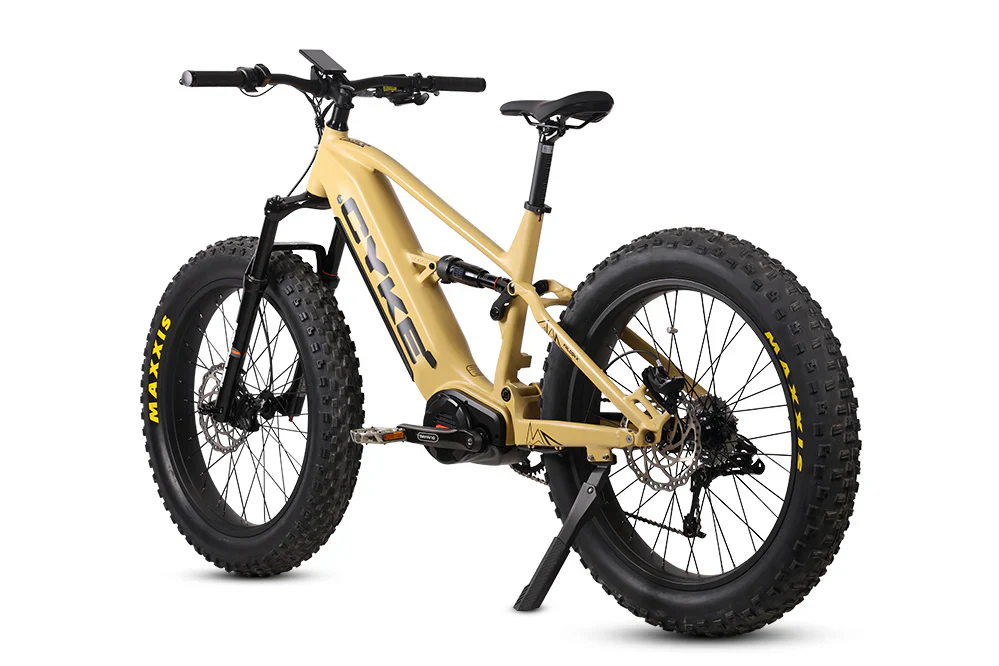

CYKE Falcon X Full Suspension Mountain E-Bike

CYKE Falcon X Full Suspension Mountain E-Bike

CYKE Falcon X Full Suspension Mountain E-Bike

Introduce Falcon X, an off-road eBike for All-Terrain exploration with great power.
  • The soft-tail structure gives a more comfortable ride with better traction and improved control for various explorations.
  • The ROCKSHOX four-bar suspension system ensures a better shock absorption.
  • The BAFANG Mid-Drive motor that can reach up to 1100W power and 160 Nm of torque ensures a effortless, comfortable and powerful riding experience.
  • Equipped with the MAXXIS 26x4.8" Snow Tire, which can help you easily handle riding in a variety of different road conditions, including snow.
Specs

E-bike System

Battery 48V/20Ah, 960Wh Lithium-ion battery with LG 21700 cells
Motor BAFANG Mid-drive, 1000W rated power, 1100W peak power, 160 Nm of torque, based on CAN6.3 protocol
Range 65 Miles (75kg load, flat road, Cassette set to the smallest gear, and PAS1 level of pedal assist). The actual range varies depending on the weather, load, road conditions, etc.
Display LCD display with Bluetooth, 4" TFT color screen, IP66
Charger Input: 100-240V AC, 2.0A; Output: 54.6V DC, 3.0A.
Charging Time Approx. 8-10 hours
Sensor Torque sensor
Max Speed 28 MPH both in pedal-assist and throttle modes
Pedal Assist Modes 5 Levels

Frameset

Frame Aluminum alloy, 17"/19"Size, 150mm travel
Fork RST RENEGADE 26, 80-120mm travel, 32mm alloy pillar, air spring and oil damping, hydraulic lockout
Shock ROCKSHOX RS-DELUXE SELECT-C1, 190mmx45mm, iDebonAir+ air spring, Maxima Plush dynamic suspension lubricant

Wheels

Rim Aluminum ring, 12G 36H AV, 580*98mm
Front Tire Maxxis Minion FBF, 26x4.8", Snow tires
Rear Tire Maxxis Minion FBR, 26x4.8", Snow tires
Front Hub Aluminum alloy, disc brake, 12G 36H, ID15x150mm
Rear Hub Aluminum alloy, disc brake, 12G 36H, ID12*197mm
Spoke Black stainless, 12G, 258mm

Drivetrain

Shifter SRAM SL-X5, 9 speed, optimized for EXACT ACTUATION™
Rear Derailleur SRAM RD-X5, 9 speed, EXACT ACTUATION™
Cassette SRAM CS-PG-950, 9 speed
Crank arm BAFANG 170mm length
Chainring BAFANG MM G520, 40T
Chain KMC E10S for e-bikes
Pedal Aluminum alloy

Components

Saddle VELO, boron steel, 160mm width
Seat Post Aluminum alloy, Ø31.6*264mm
Stem Bar bore: Ø31.8mm; Clamp I.D.: Ø28.6mm
Handlebar Flat Bar, Aluminum Alloy Ø31.8mm, Width 780mm
Grips VELO, trail grip
Brakes TEKTRO HD-E730, 4-piston caliper, hydraulic disc, with power cut-off sensor
Brake rotor TEKTRO HD-E730, 3T, 203x2mm
Kickstand Side Kickstand

Weight

Weight Limit 300 lbs
Net Weight 82.7 lbs
Gross Weight 105.2 lbs

Size

Bike Size 82.84 x 30.9 x 45.79 in
Box Dimension 69.7 x 33.5 x 11.6 in



Download FALCON X Owner's Manual

Select Color
Select Size
From $1,189.65

Original: $3,399.00

-65%
CYKE Falcon X Full Suspension Mountain E-Bike—

$3,399.00

$1,189.65
