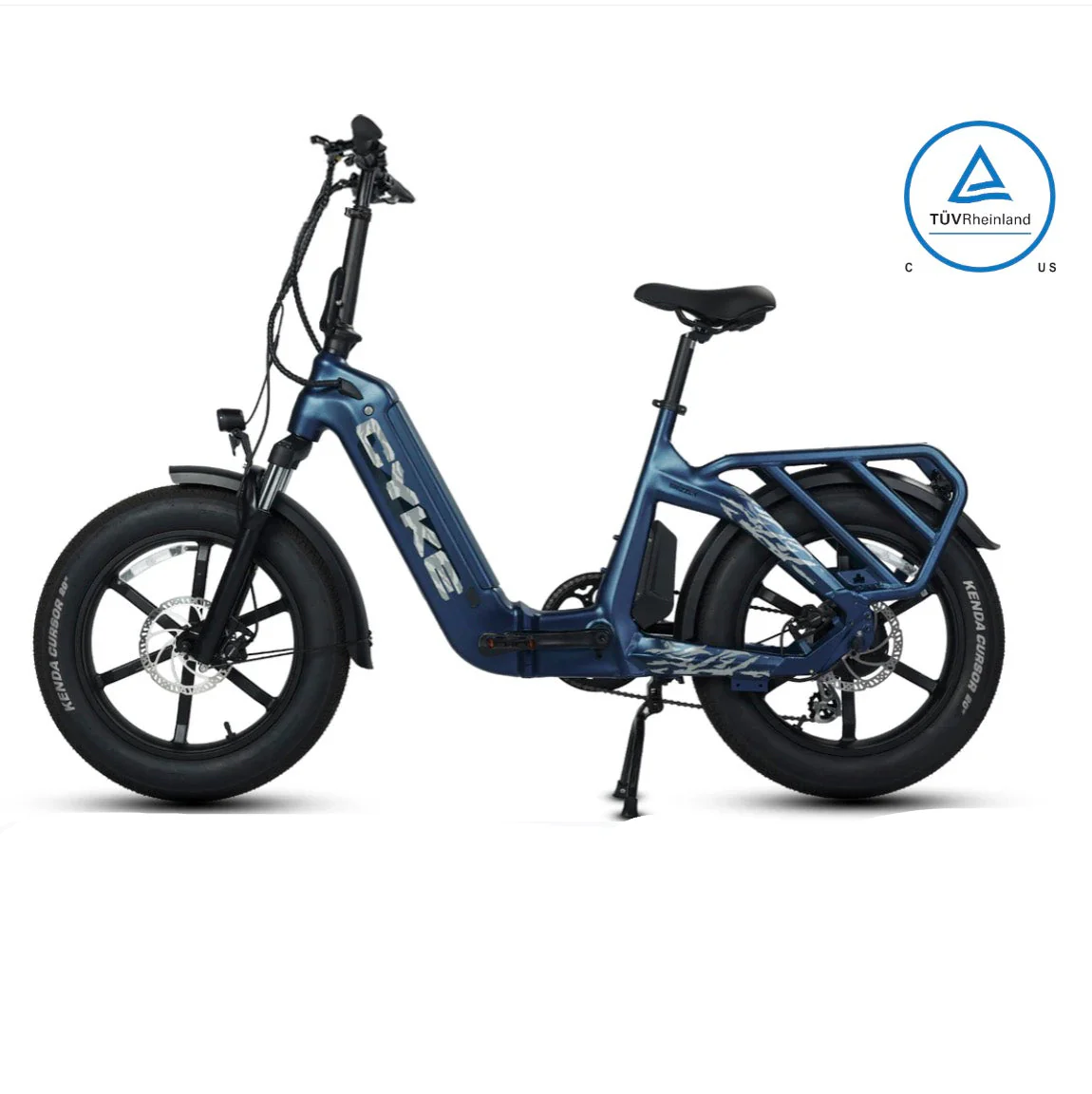

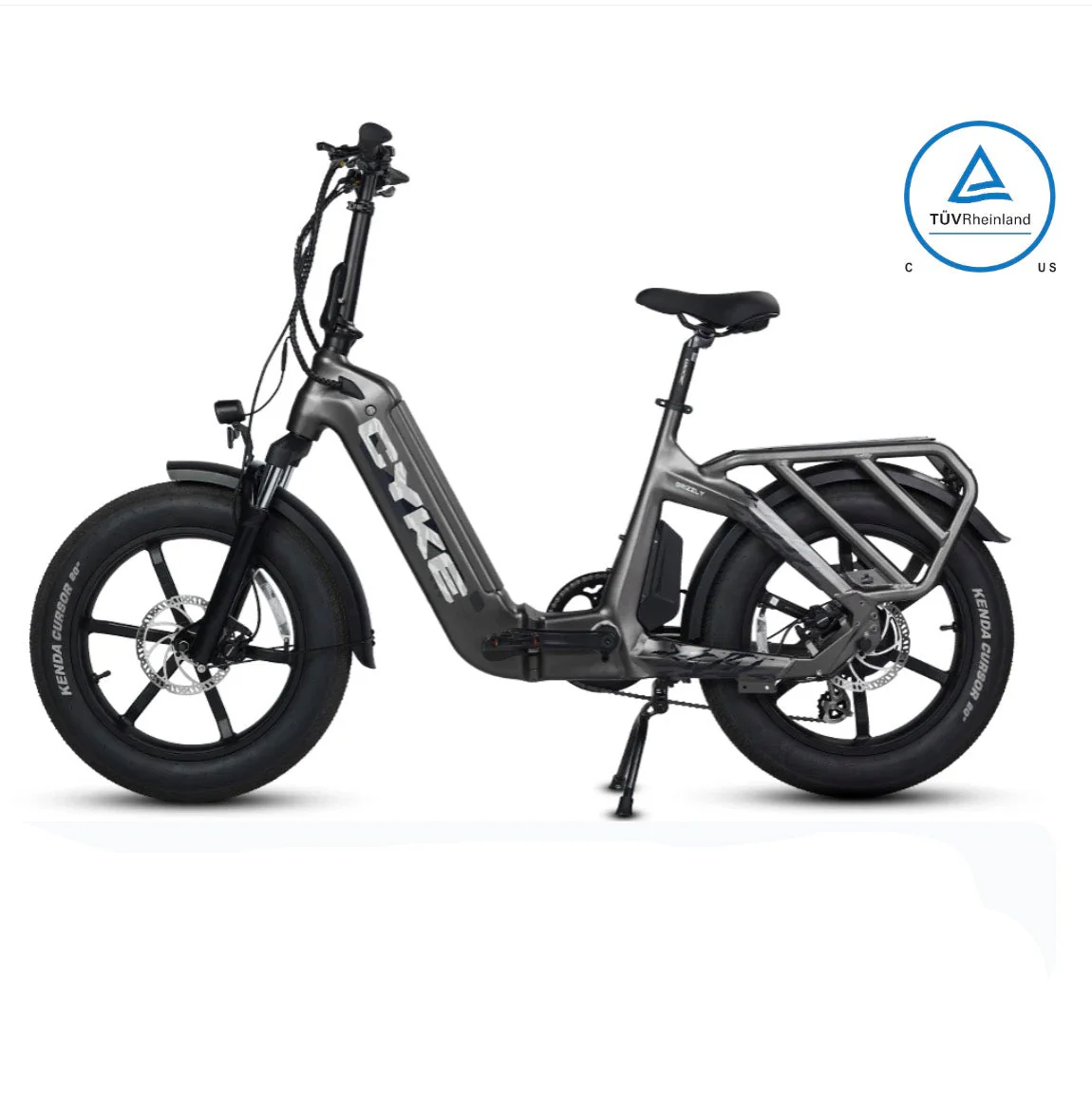

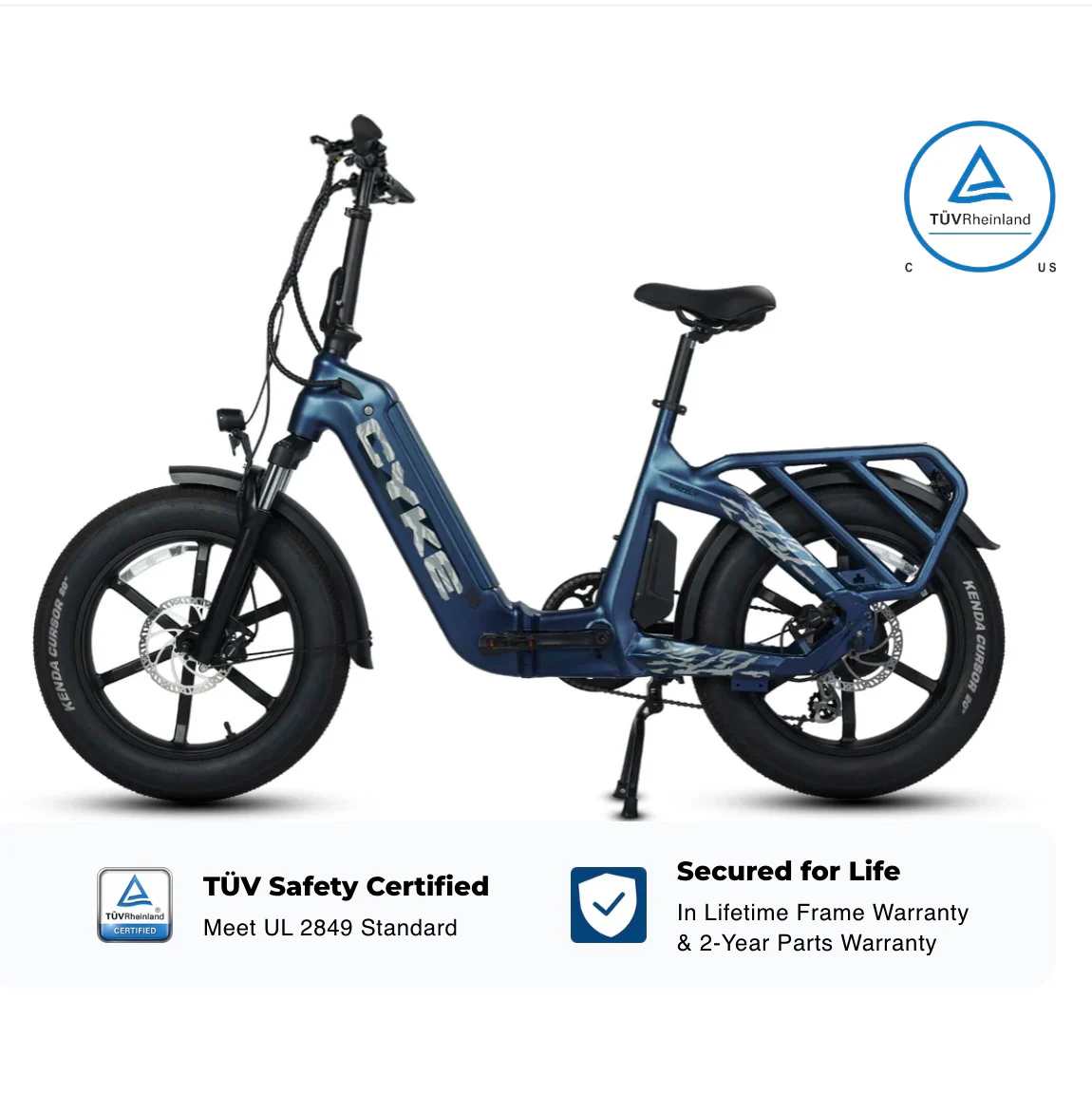

CYKE Grizzly Foldable Ebike
CYKE Grizzly Foldable Ebike
-
Foldable Frame: Designed for convenience, the Grizzly eBike features a foldable frame that simplifies storage and transportation. Perfect for urban commuters and those with limited space.
-
Enhanced Stability: Constructed from 6061 aluminum alloy and utilizing solid materials, this bike offers enhanced stability for reliable and smooth rides across varying terrains.
-
Powerful Performance: Equipped with a robust motor system, the Grizzly delivers swift speeds and seamless performance, free from any transmission interference.
-
Extended Range: Capable of traveling up to 100 miles on a single charge, this eBike is ideal for long-distance commutes or leisurely rides, ensuring you can go further with confidence.
Specs
E-bike System
| Battery | 48V/20Ah, 960Wh Lithium-ion battery with LG cells |
| Motor | BAFANG SUTTO 750W rear hub motor, 85 Nm of torque |
| Range | Up to 100 miles (with a 75kg load in ECO mode). The actual range varies depending on the weather, load, road conditions, etc. |
| Display | 2.0" color matrix HMI display |
| Charger | Input: 100-240V AC, 2.0A; Output: 54.6V DC, 3.0A. |
| Charging Time | Approx. 6-7 hours |
| Pedal Sensor | Cadence sensor |
| Max Speed | 28 MPH both in pedal-assist and throttle modes |
| Throttle | Thumb throttle |
| Pedal Assist Modes | 5 Levels |
Frameset
| Frame | Aluminum alloy |
| Fork | RST front suspension fork, 60mm travel |
Wheels
| Rim | Aluminum ring, 12G 36H AV, 422*85mm |
| Tire | KENDA 20x4.0" fat tires |
| Front Hub | 12G 36H |
Drivetrain
| Shifter | Shimano 7-speed |
| Rear Derailleur | SHIMANO ALTUS 7-speed |
| Freewheel | SHIMANO 7-speed |
| Crank Arm | 52ED, 165mm |
| Pedal | Aluminum alloy |
Components
| Saddle | Black nubuck leather |
| Seat Post | Forged Alloy, Ø30.4*350mm |
| Stem | Bar bore: Ø25.4mm; Clamp I.D.: Ø28.6mm |
| Handlebar | Flat Bar, Aluminum Alloy Ø25.4mm, Width 580mm |
| Grips | 140mm black grips |
| Brakes | TEKTRO hydraulic disc brake |
| Brake Rotor | 180mm brake rotor |
| Front Light | 40 LUX headlight |
| Tail Light | Brake light |
| Rear Rack | YES, integrated with the frame |
| Fenders | Front & rear fenders, Engineering Plastic |
| Kickstand | Center two-leg kickstand |
Weight
| Weight Limit | 450 lbs |
| Net Weight | 92.6 lbs |
| Gross Weight | 119.7 lbs |
Size
| Bike Size | 72.1 x 24.41 x 45.91-50.63 in |
| Bike Size (Folded) | 36 x 18.9 x 37 in |
| Box Dimension | 62.0 x 11.6 x 30.5 in |
User Manual
Download GRIZZLY Owner's Manual
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
CYKE Grizzly Foldable Ebike
-
Foldable Frame: Designed for convenience, the Grizzly eBike features a foldable frame that simplifies storage and transportation. Perfect for urban commuters and those with limited space.
-
Enhanced Stability: Constructed from 6061 aluminum alloy and utilizing solid materials, this bike offers enhanced stability for reliable and smooth rides across varying terrains.
-
Powerful Performance: Equipped with a robust motor system, the Grizzly delivers swift speeds and seamless performance, free from any transmission interference.
-
Extended Range: Capable of traveling up to 100 miles on a single charge, this eBike is ideal for long-distance commutes or leisurely rides, ensuring you can go further with confidence.
Specs
E-bike System
| Battery | 48V/20Ah, 960Wh Lithium-ion battery with LG cells |
| Motor | BAFANG SUTTO 750W rear hub motor, 85 Nm of torque |
| Range | Up to 100 miles (with a 75kg load in ECO mode). The actual range varies depending on the weather, load, road conditions, etc. |
| Display | 2.0" color matrix HMI display |
| Charger | Input: 100-240V AC, 2.0A; Output: 54.6V DC, 3.0A. |
| Charging Time | Approx. 6-7 hours |
| Pedal Sensor | Cadence sensor |
| Max Speed | 28 MPH both in pedal-assist and throttle modes |
| Throttle | Thumb throttle |
| Pedal Assist Modes | 5 Levels |
Frameset
| Frame | Aluminum alloy |
| Fork | RST front suspension fork, 60mm travel |
Wheels
| Rim | Aluminum ring, 12G 36H AV, 422*85mm |
| Tire | KENDA 20x4.0" fat tires |
| Front Hub | 12G 36H |
Drivetrain
| Shifter | Shimano 7-speed |
| Rear Derailleur | SHIMANO ALTUS 7-speed |
| Freewheel | SHIMANO 7-speed |
| Crank Arm | 52ED, 165mm |
| Pedal | Aluminum alloy |
Components
| Saddle | Black nubuck leather |
| Seat Post | Forged Alloy, Ø30.4*350mm |
| Stem | Bar bore: Ø25.4mm; Clamp I.D.: Ø28.6mm |
| Handlebar | Flat Bar, Aluminum Alloy Ø25.4mm, Width 580mm |
| Grips | 140mm black grips |
| Brakes | TEKTRO hydraulic disc brake |
| Brake Rotor | 180mm brake rotor |
| Front Light | 40 LUX headlight |
| Tail Light | Brake light |
| Rear Rack | YES, integrated with the frame |
| Fenders | Front & rear fenders, Engineering Plastic |
| Kickstand | Center two-leg kickstand |
Weight
| Weight Limit | 450 lbs |
| Net Weight | 92.6 lbs |
| Gross Weight | 119.7 lbs |
Size
| Bike Size | 72.1 x 24.41 x 45.91-50.63 in |
| Bike Size (Folded) | 36 x 18.9 x 37 in |
| Box Dimension | 62.0 x 11.6 x 30.5 in |
User Manual
Download GRIZZLY Owner's Manual
