Velowave Forest XM Full Suspension MTB Ebike

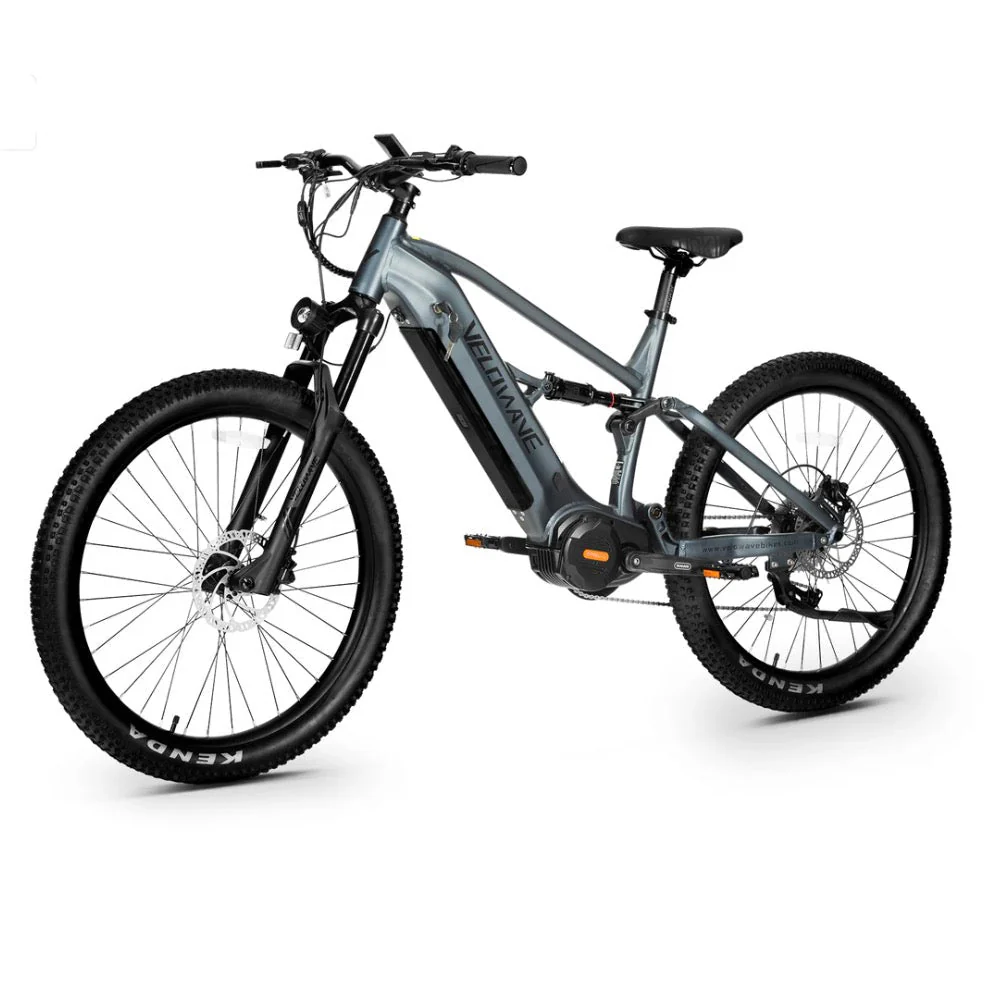

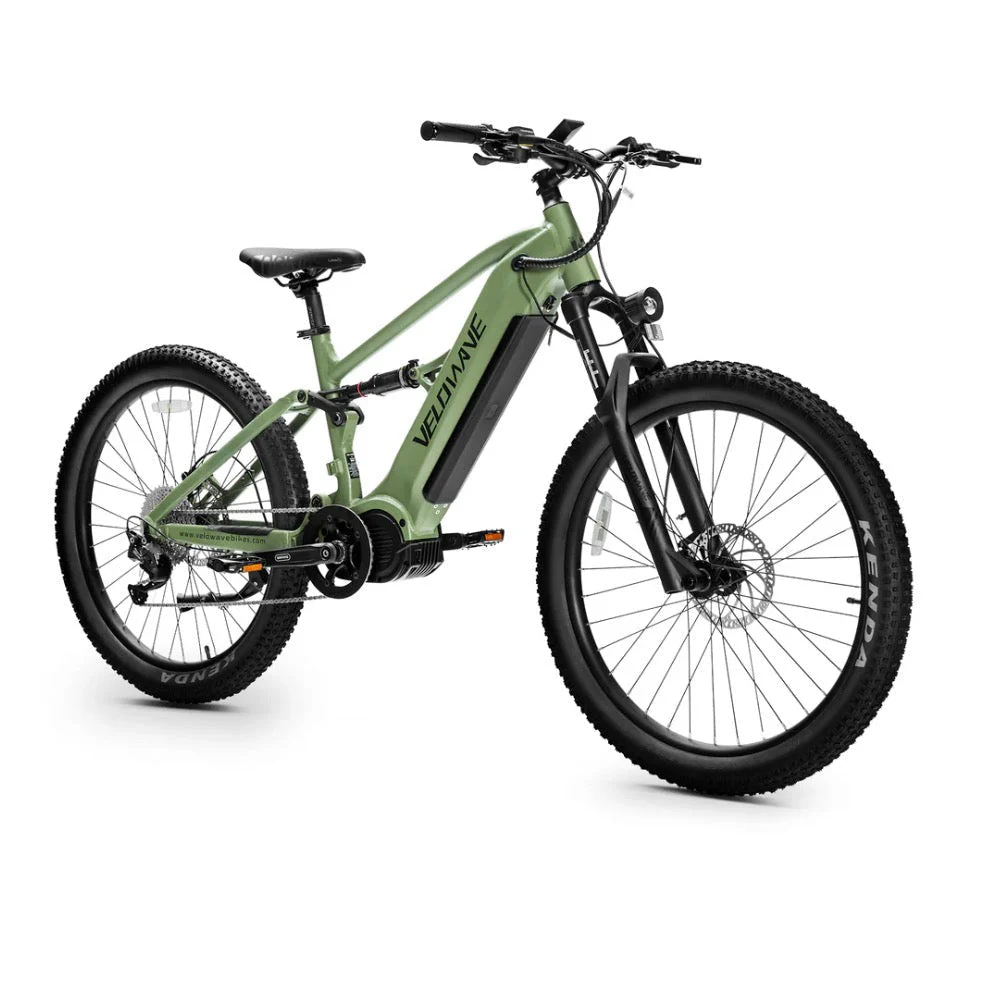

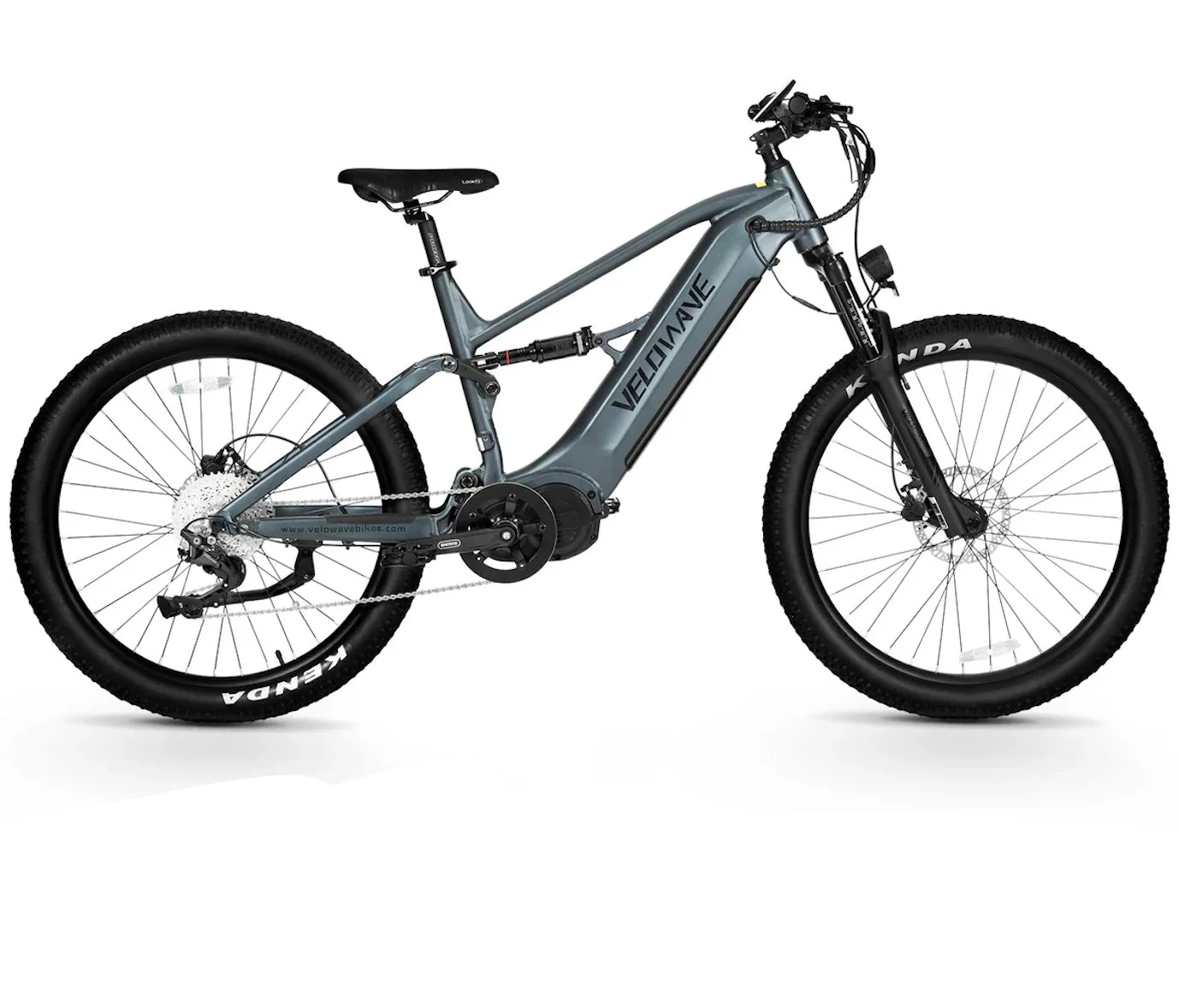

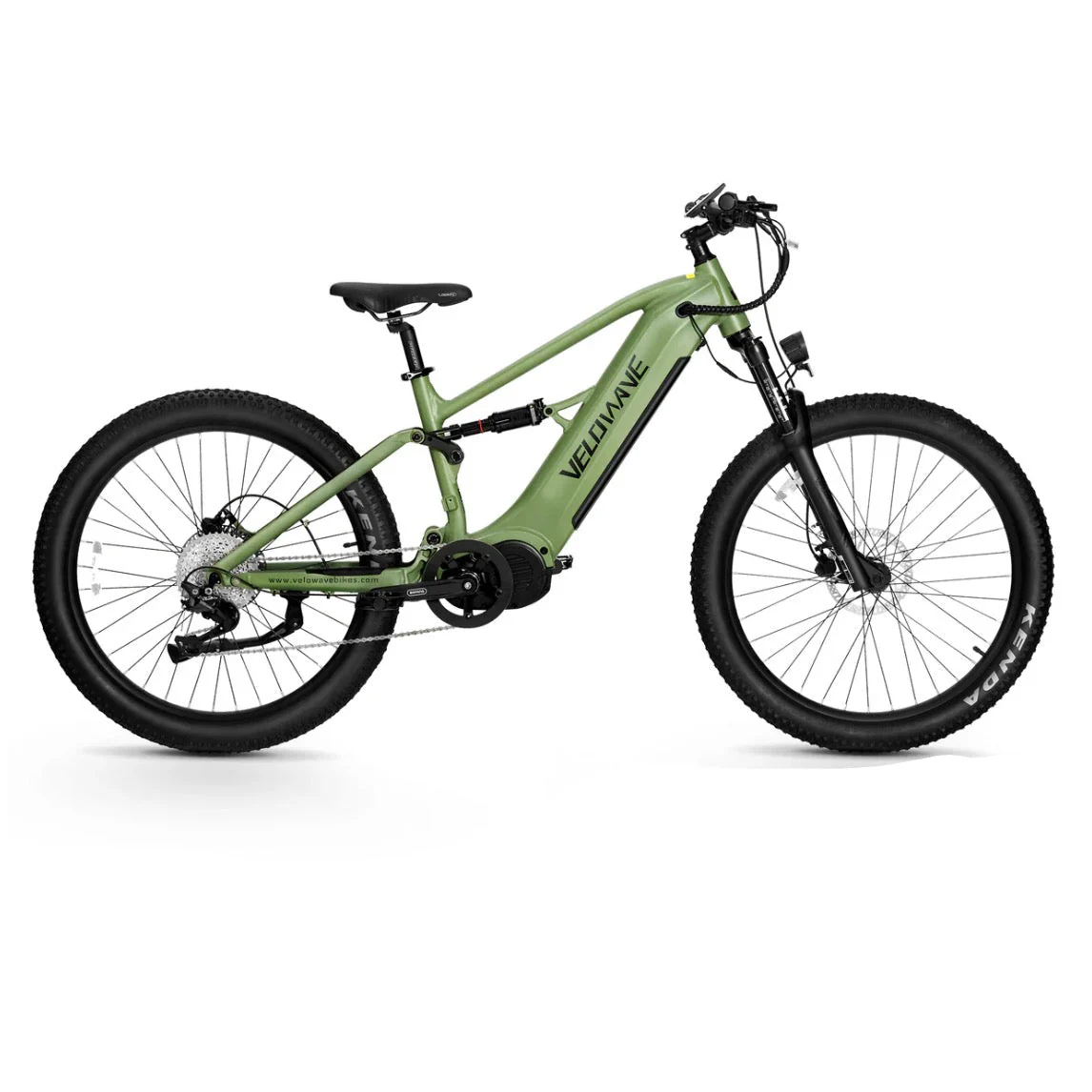

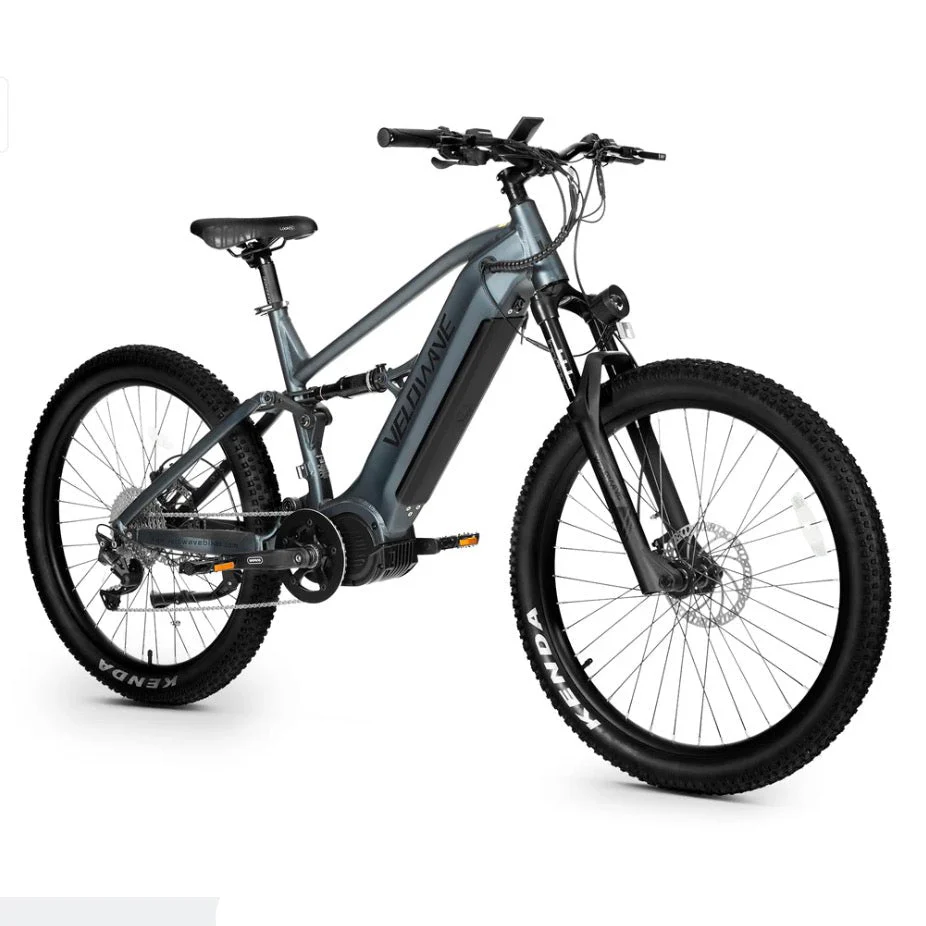

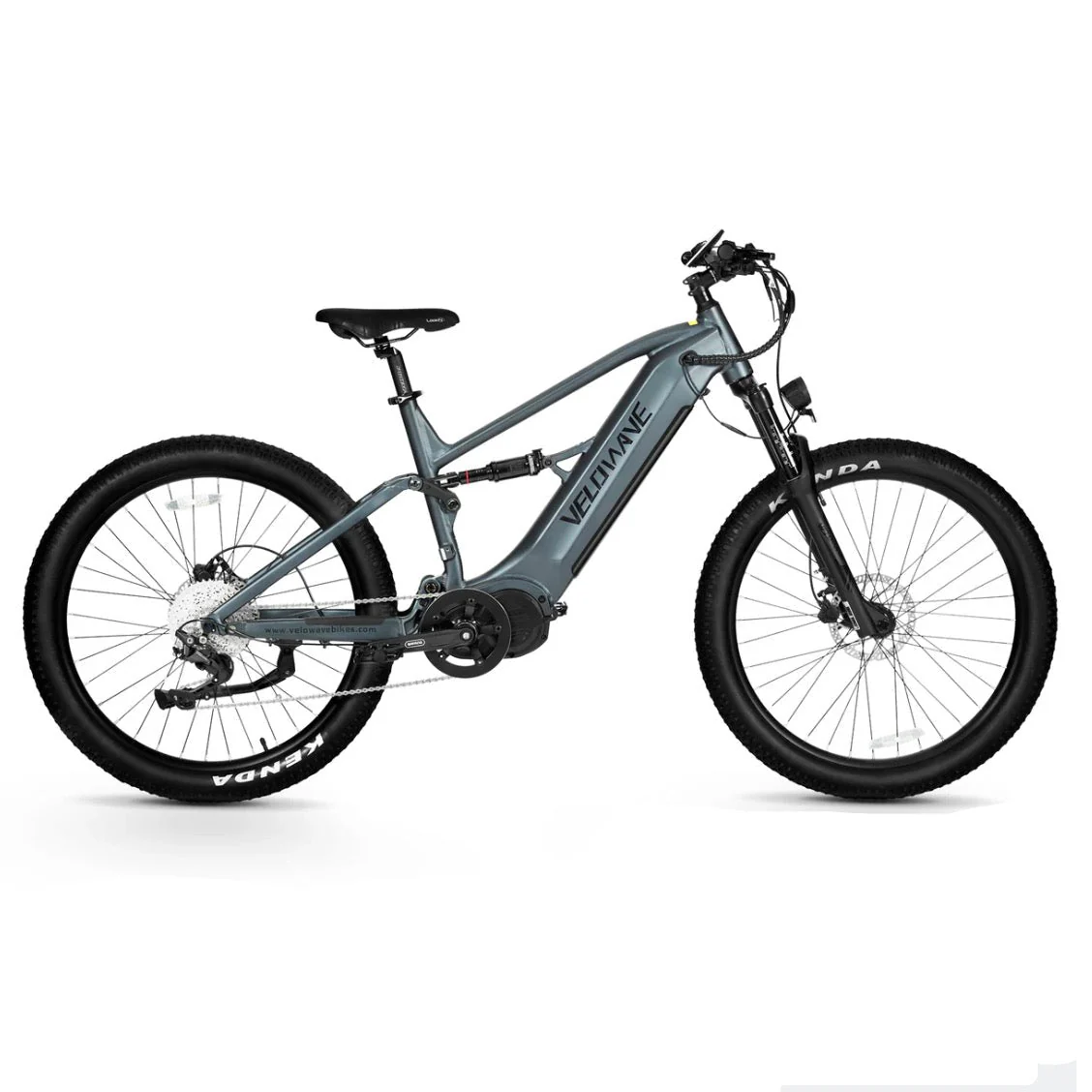

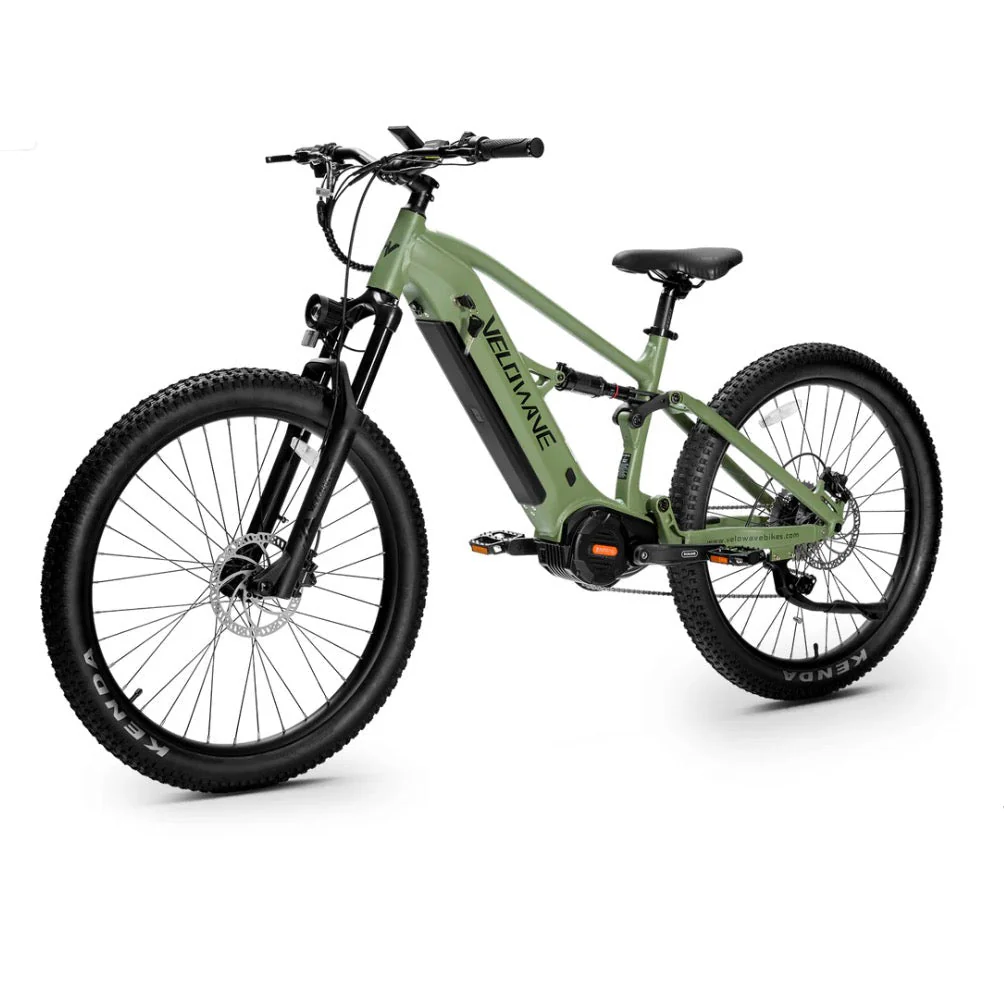

Velowave Forest XM Full Suspension MTB Ebike 1000W RockShox 48V 85Mi 37MPH
Don't want to bounce high off gravel or potholes on your e-bike, do you? The Forest XM stands out with its robust shock absorbers, ensuring a much smoother and more comfortable riding experience compared to other bikes. Crafted from high-performance 6061 Aluminum Alloy, the Forest XM boasts a sleek design with an integrated battery and advanced front and rear suspension. Perfectly balanced with a frame travel of 133 mm, it provides a smooth, responsive ride over any terrain, combining innovation, performance, and style into one dynamic package.
Specs & Size
| Size | 17'' | 19'' |
| Total Length | 2033mm | 2043mm |
| Head Tube Length | 150mm | 150mm |
| Seat Tube | 432mm | 483mm |
| Handlebar Height | 1135mm | 1135mm |
| Wheelbase | 1303mm | 1313mm |
| Standover Height | 754mm | 798mm |
| Reach | 468mm | 478mm |
| Seat Height Min/Max | 866mm/1021mm | 910mm/1065mm |
General
- Max Speed:Up to 37 MPH on Pedal Assist; 20 MPH on Throttle
- Range: Avg. 75 Miles* on PAS, up to 85 Miles on Level 1, 60 Miles* on Throttle ( Range Per Charge is measured under the conditions that power is sufficient, with a 75kg load, at 86°F(30°C), 70% humidity, on a level road, in pedal assist mode with level 1 assistance, and in pure electric riding mode by throttle. Actual results may vary based on differences in temperature, load, wind speed, road conditions and other factors.)
Frameset
- Frame:6061 Alluminum Alloy with Internal Battery, with Front and Rear Suspension, Frame Travel 133 mm
- Fork:Air Suspension Fork with 140mm travel, with lockout

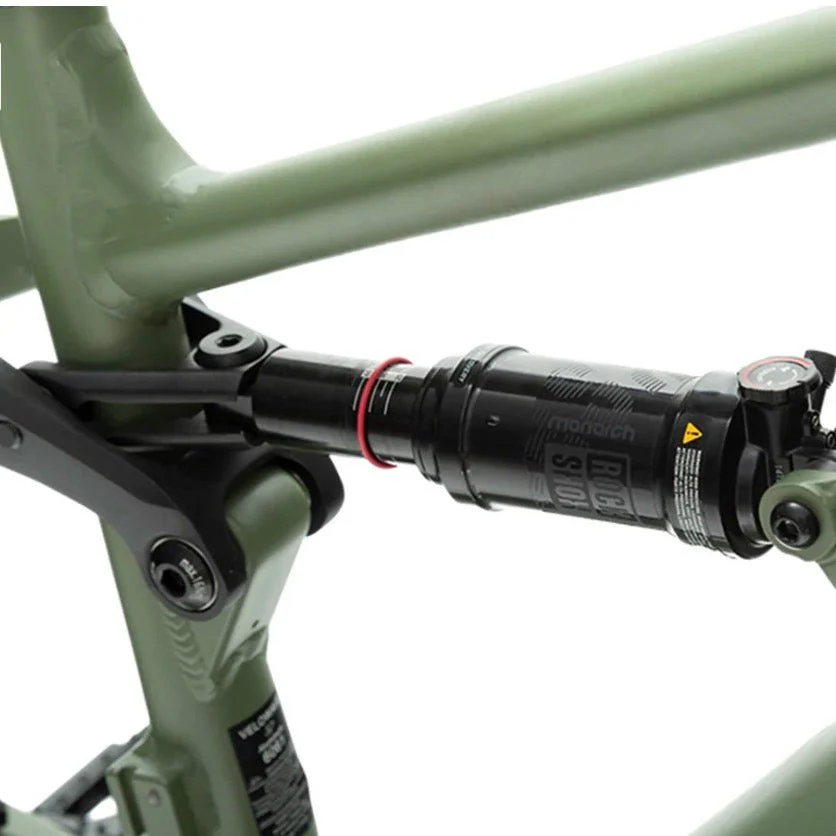

- Rear Suspension:Rockshox RS-MNR-R-C4 184X44 air spring with 44mm travel, with external rebound adjustment
Wheels
- Rim:Aluminum 27.5" 36H Front & Rear
- Front Wheel Spokes:Black Stainless 13G x 269/270 mm, Front and Rear
- Hubs:Disc Nutted Front / Rear Axles
- Tire:Kenda 27.5" x 2.8" Tires
- Tire Size:27.5" x 2.8"
E-system

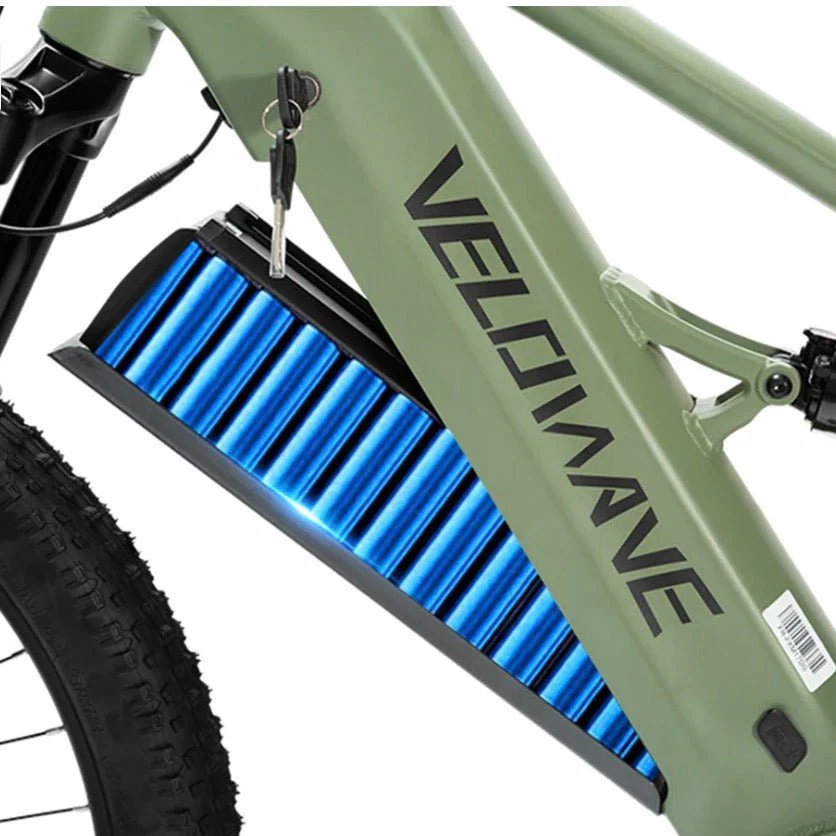

- Battery:Removable Internal Lithium-ion Battery 48V 20Ah (960Wh) with LG cells
- Charger:48V 3 Amp Charger, Approx. 7 Hour Charging

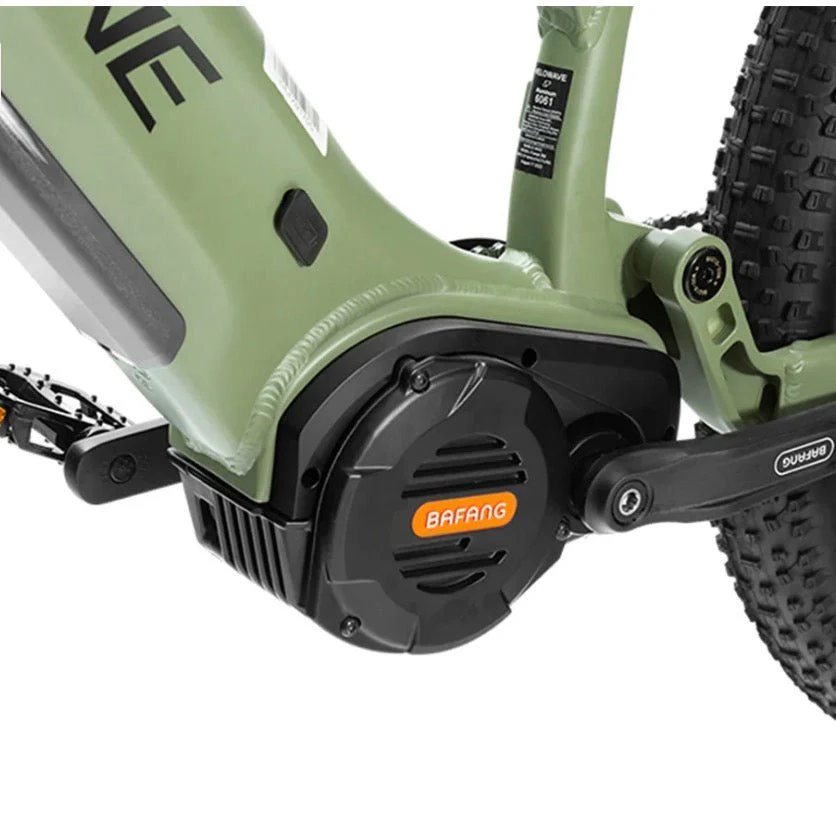

- Motor:1000W （Peak 1200W），160Nm

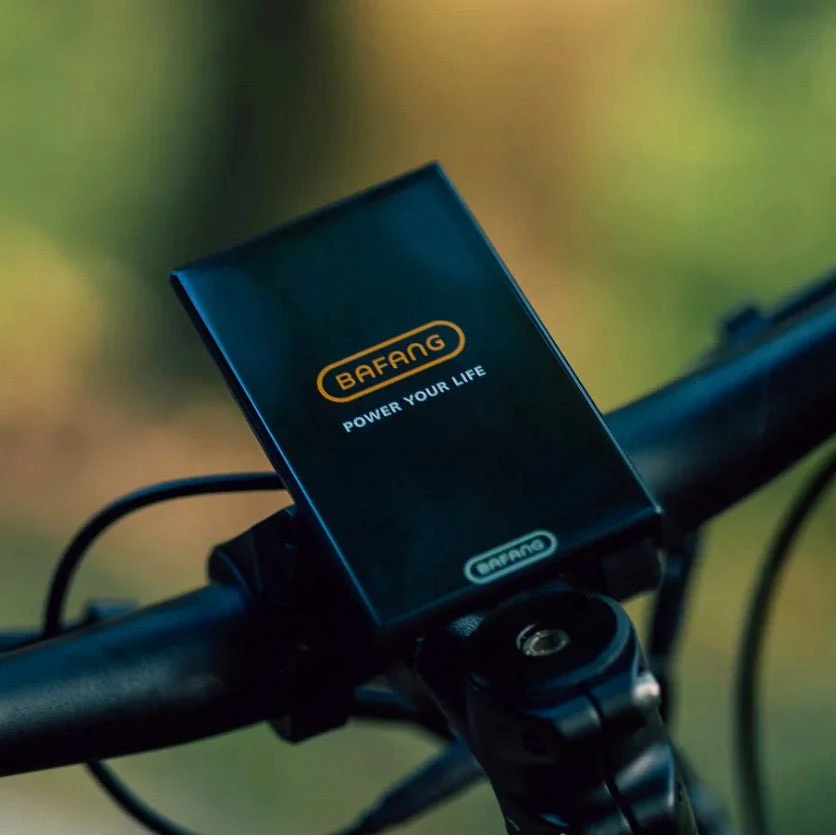

- Display:TFT Smart Easy Read Display with Backlight, Colorful screen
- Pedal Assist:6 Levels
- Sensor:Torque Sensor
- Throttle:Throttle on demand - Throttle from a complete stop
- Light:Front 48V LED Light 80 LUX; Rear Blinking Light

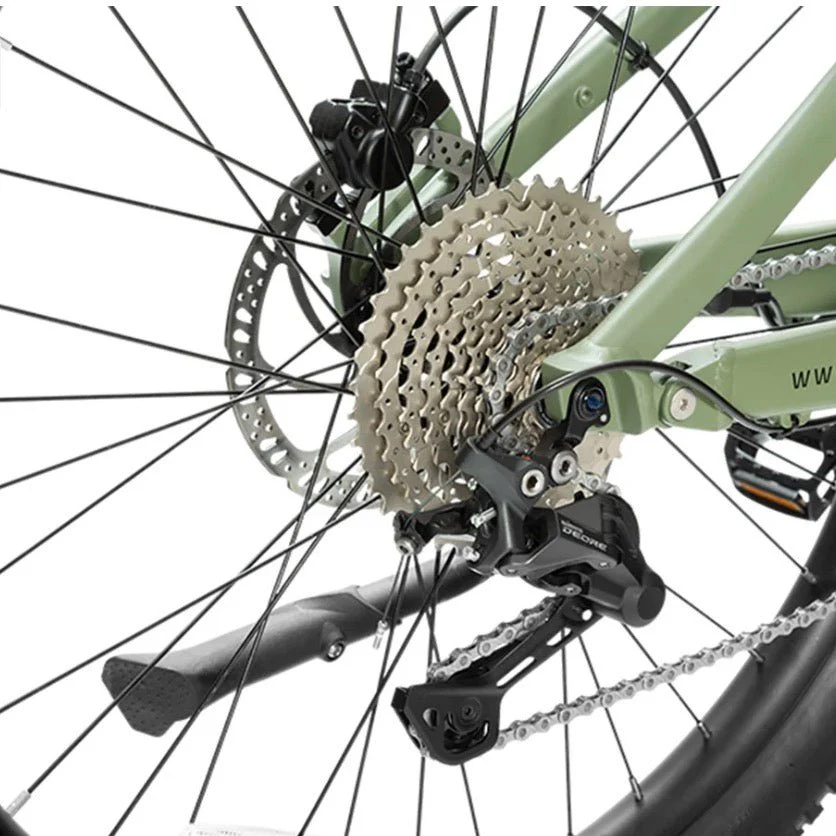

Drivetrain
- Shifter:Shimano 10-Speed Thumb Shift
- Crankset:170mm w/ 40 T
- Freewheel:Shimano 11-42T, 10-Speed CASSETTE
- Pedals:Alloy Platform
- Chain:KMC 134 Link, 10-Speed
- Rear Derailleur:Shimano Deore RD-M4120 10-Speed
Components
- Saddle:Comfortable Wide Saddle
- Seatpost:Forged Alloy, φ31.6x300mm
- Seat Clamp:φ38.1mm Quick Release
- Stem:Bar bore: Ø31.8mm, Clamp I.D.: Ø28.6mm, HEIGHT: 60mm, RISE: 6°
- Handlebar:Aluminum 31.8mm, Width 740mm
- Headset:Sealed Bearing Headset
- Grips:Ergonomic Comfort
- Brakes:Tektro Hydraulic Disc Brakes w/180mm discs, w/ power-cut-off function
- Kickstand:Included, Rear Mount
- Fenders:Not Included
- Rear Rack:Not Included
Weight
- Net Weight:76 lbs / 34.5 kg (including battery)
- Gross Weight:103 lbs / 46.5 kg
- Battery Weight:11.4 lbs / 5.15 kg
- Max Load Capacity:385 lbs / 175 kg (including cargo)
Size
- Product Size:2043 x 1135 x 745 mm
- Packing Size:1700 x 300 x 830 mm
What is in the box
Electric Bike x 1
Charger x 1
Battery x 1
Front Light & Reflector Combo x1
Rear Blinking Light x1
Pedals x 2
Instruction Manual x 1
Allen Wrench x 1
Spare Spokes x 2
Select Color
Select Size
From $1,119.65
Original: $3,199.00
-65%Velowave Forest XM Full Suspension MTB Ebike—
$3,199.00
$1,119.65Product Information
